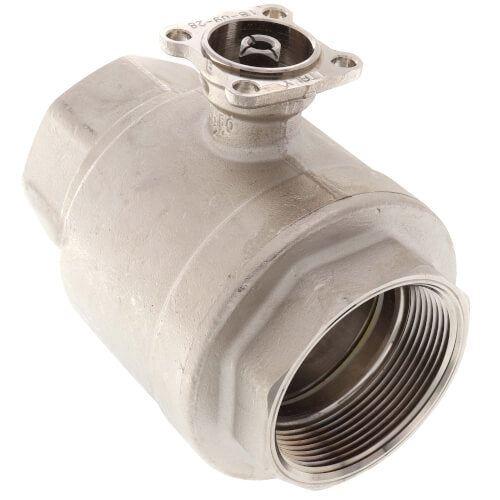

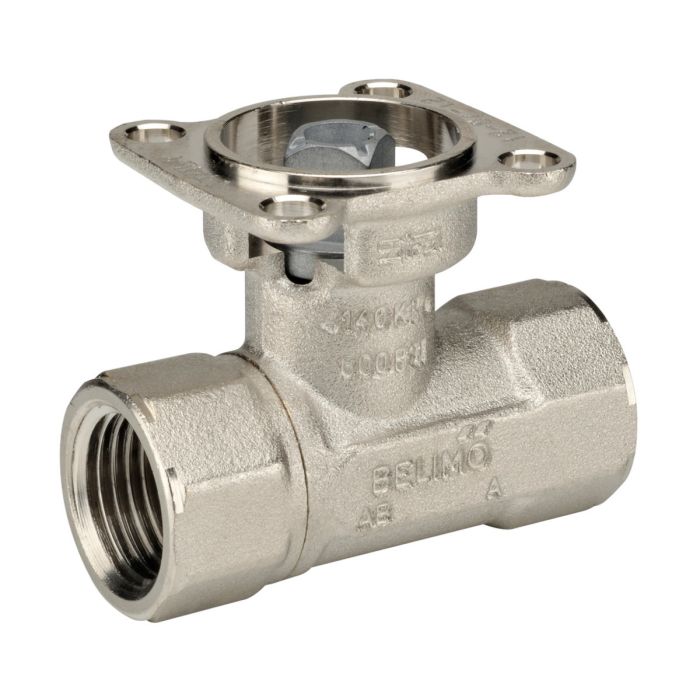

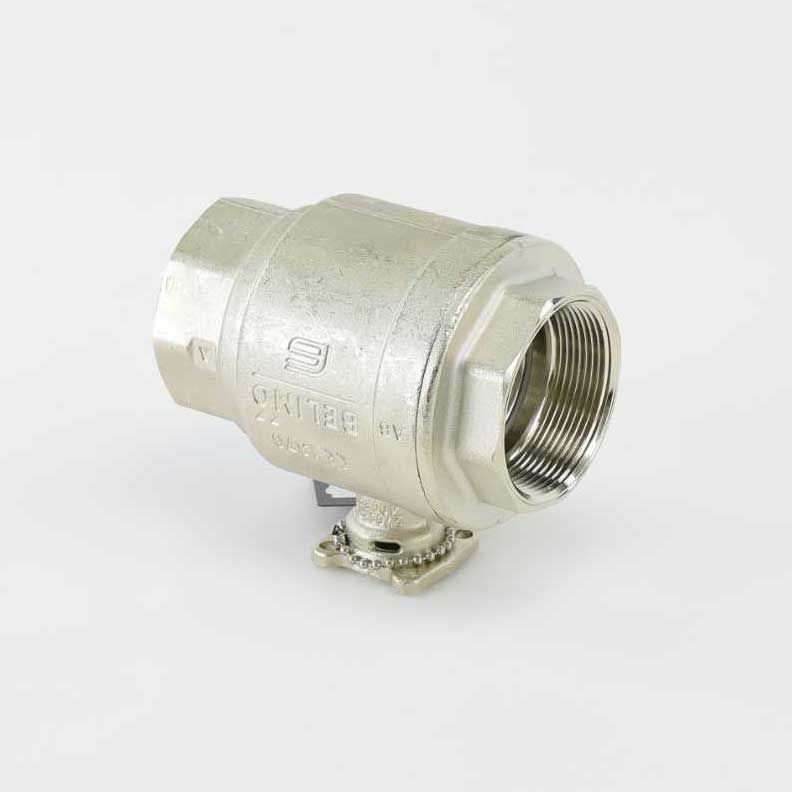

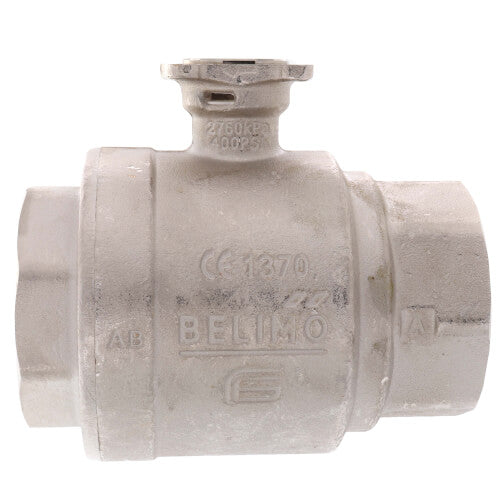

Belimo B254 CCV 2 Way 2 in NPT 240 Cv

Product Description

The Belimo B254 is a characterized control valve designed for heating and cooling applications. It features a two-way design with a two inch NPT connection and a flow coefficient (Cv) of 240. This valve is suitable for hydronic systems with variable flow and can be used in air handling units, fan coil unit heating, or cooling coils.

• Self-cleaning ball valve design ensures zero leakage.
• Rated for water temperatures up to 250 degrees Fahrenheit.
• Constructed with a forged brass body and stainless steel ball and stem.

Product Highlights

This valve offers an equal percentage characteristic for better control stability and energy efficiency.

Product Information

Standard Information

• Manufacturer: Belimo
• Part Number: B254

Technical Specifications

• Fluid: Chilled or hot water up to 60% glycol
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• End Fitting: Internal thread
• Trim: Stainless steel
• Valve Size: 2 [50]
