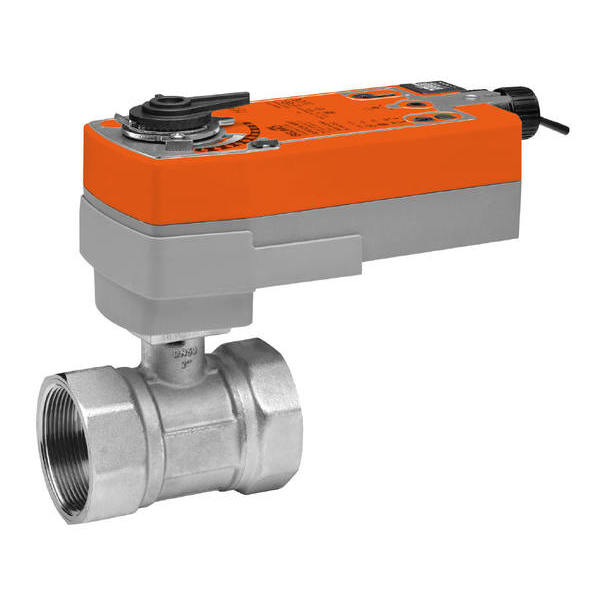

Belimo B252+AFRX24-MFT-S CCV Assembly 2 Way 2 in NPT 85 Cv

Product Description

The Belimo B252+AFRX24-MFT-S is a characterized control valve designed for HVAC systems. It features a two-way configuration and is suitable for use with both chilled and hot water systems. This valve includes a nickel-plated brass body and a stainless steel ball and stem for durability. The direct coupled actuator is designed for operation with 24 VAC/DC power, making it compatible with various automation systems.

• Spring return actuator technology
• Easy integration into HVAC systems
• Multi-function control options

Product Highlights

The valve is ideal for applications requiring precise control of fluid flow. It is commonly used in heating, ventilation, and air conditioning systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B252+AFRX24-MFT-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 85
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 2 inches
• Actuator Type: Spring return
• Auxiliary Switches: 2 x SPDT
• Control Type: MFT/Programmable
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Electrical Connection: Cable
• Manual Override: 5 mm hex crank supplied
• Power Consumption (Holding): 3 W
• Power Consumption (Running): 7.5 W
• Running Time (Fail-safe): Less than 20 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: 24 V
