Product Description

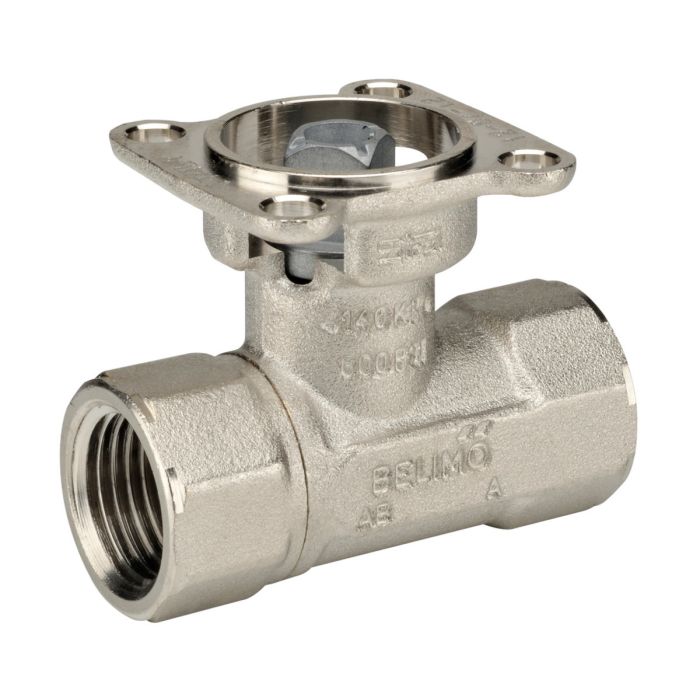

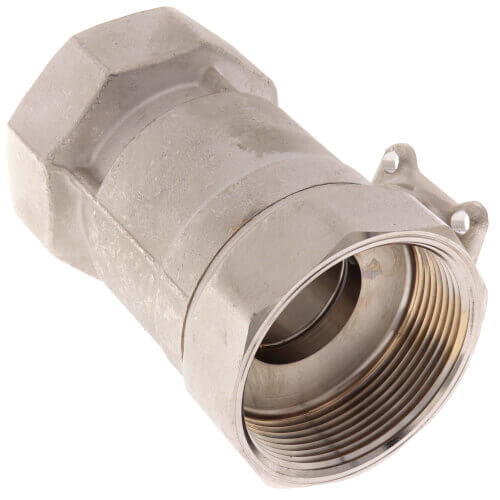

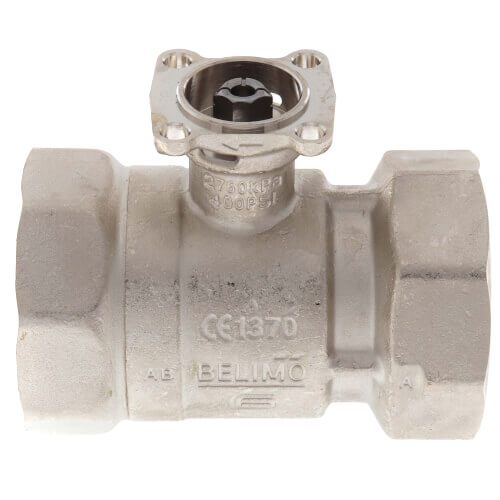

The Belimo B252 Characterized Control Valve (CCV) is designed for various HVAC applications, including air handling units, heating or cooling coils, fan coil units, unit ventilators, VAV box reheat coils, and bypass loops. This 2-way valve is suitable for use in hydronic systems with variable flow.
- Designed for variable flow hydronic systems
- Applications in air handling units and fan coil units
- Stainless steel ball and trim
Product Highlights
The Belimo B252 Characterized Control Valve (CCV) offers stability and control with its equal percentage characteristic. The special characterizing disc inside provides smooth, controlled flow, optimizing energy consumption and enhancing part-load performance.
Product Information
Standard Information
Technical Specifications
-
Valve Size: 2 inches (50 mm)
-
Flow Capacity (Cv): 85
-
Trim: Stainless steel
-
Fluid: Chilled or hot water up to 60% glycol
-
Controllable Flow Range: 75B0
-
Pattern: 2-way
-
Pressure Independent: No
-
End Fitting: Internal thread
-
Material: Stainless Steel (Ball & Stem), Forged Brass (Body)
-
Action: 90-degree Rotation
-
Connection Type: Female Threaded
-
Close Off Pressure: 200 psi
-
Body Pressure Rating: 400 psi
-
Warranty: 5 Year
