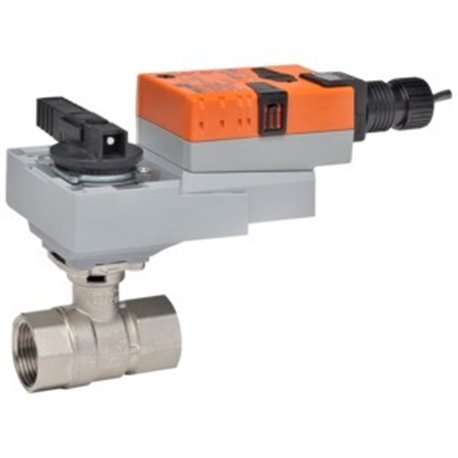

Belimo B251+ARB24-3-S CCV Assembly 2 Way 2 in NPT 65 Cv

Product Description

The Belimo B251+ARB24-3-S is a characterized control valve designed for reliable operation in HVAC applications. This product features a nickel plated brass body and a stainless steel ball and stem. It is a direct coupled actuator that operates on a non fail-safe basis, suitable for 24 VAC/DC systems with on/off or floating point control.

• Two-way operation for versatile flow control
• Flow capacity rated at 65 Cv
• Compatible with chilled or hot water systems up to sixty percent glycol

Product Highlights

The valve is engineered for use in demanding environments, ensuring effective control over water flow in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B251+ARB24-3-S

Technical Specifications

• Valve Size: 2 inches
• Control Type: Floating/3-point
• Angle of Rotation: 90 degrees
• Electrical Connection: Cable
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 2.5 W
• Running Time (Motor): 90 seconds
• Fluid Compatibility: Chilled or hot water up to 60% glycol
