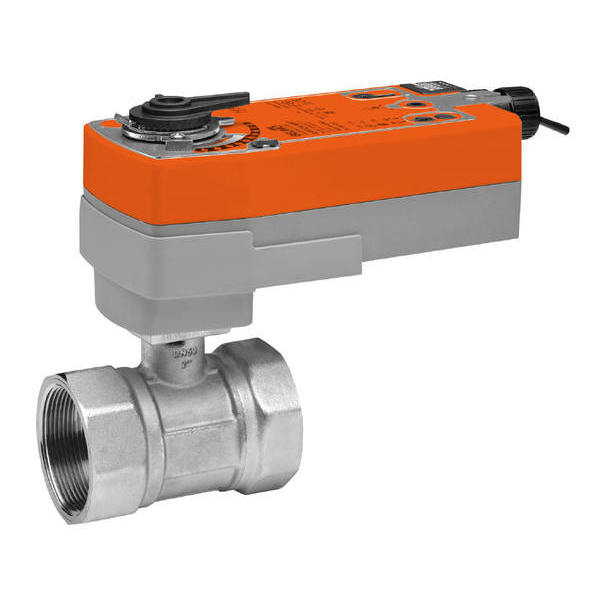

Belimo B251+AFRBUP CCV Assembly 2 Way 2 in NPT 65 Cv

Product Description

The Belimo B251+AFRBUP is a characterized control valve designed for efficiency in HVAC systems. This two-way valve is suitable for both heating and cooling applications. It features a forged brass body with a nickel-plated finish, ensuring durability and corrosion resistance. The valve operates on a spring return mechanism and provides a torque rating of 180 in-lb, perfect for various airflow control needs.

• Valve is used in air handling units on heating or cooling coils.
• Suitable for hydronic systems with variable flow.
• Offers self-cleaning and zero leakage design.

Product Highlights

This valve is ideal for professionals in HVAC, providing reliable performance under various conditions.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B251+AFRBUP

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled, hot water, up to 60% glycol
• Pressure Independent: No
• Control Type: On/Off
• Valve Size: 2 inches
• Flow Characteristic: Equal percentage
• Electrical Connection: 3 ft. 18 GA appliance cable with 1/2 in. conduit connector
• Power Consumption: 7 W running, 3.5 W holding
