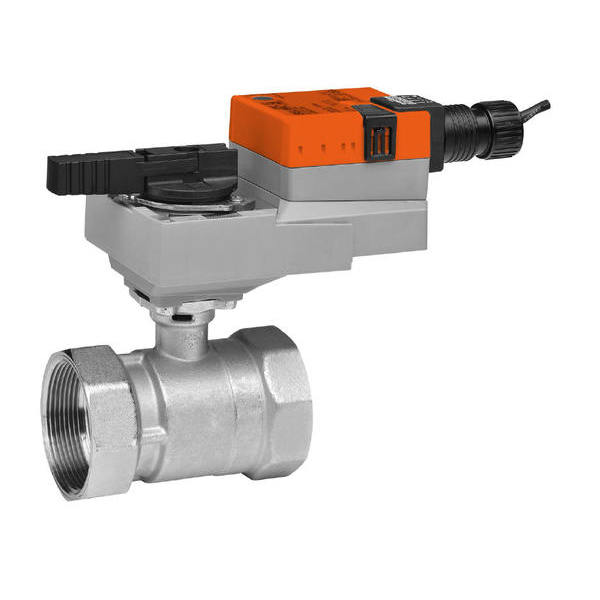

Belimo B250+ARX120-SR CCV Assembly, 2 Way, 2 in. NPT, 57 Cv

Product Description

The Belimo B250+ARX120-SR is a characterized control valve designed for HVAC applications. This valve features a nickel-plated brass body and a stainless steel ball and stem, ensuring durability and reliability. It operates with a non-fail-safe actuator that supports a voltage range of one hundred to two hundred forty VAC. This actuator can modulate according to a control signal of two to ten VDC or four to twenty mA.

• Durable nickel-plated brass body
• Stainless steel ball and stem
• Compatible with two to ten VDC or four to twenty mA control signals

Product Highlights

This valve is suitable for both chilled and hot water systems, allowing for an extensive application in HVAC control. It operates as a two-way valve and is designed for internal thread end fittings. The actuator runs efficiently with a power consumption of one watt when holding and four watts while running, making it an energy-efficient choice.

Product Information

Standard Information

• Brand: Belimo
• Min Order Qty: 1

Technical Specifications

• Valve Size: 2 inches
• Cv: 57
• Fluid Compatibility: Chilled or hot water with up to 60% glycol
• Angle of Rotation: 90 degrees
• Control Type: DC 2...10 V
• Electrical Connection: Cable
• Degree of Protection: IP54 NEMA2
• Running Time (Motor): 90 seconds / 90 degrees
