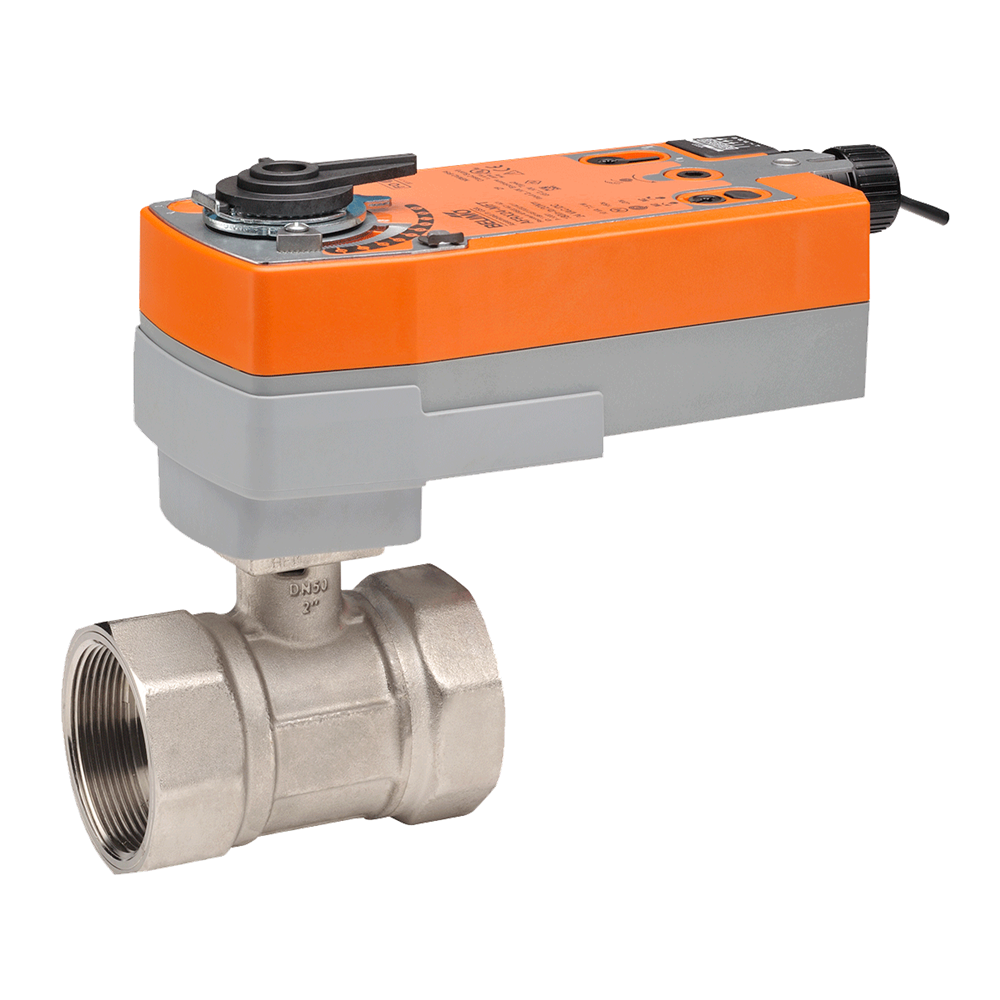

Belimo B250+AFRX24 ccv 2 inches 2 way 57 cv w/ spg rtn 24v on/off

Product Description

The BELIMO B250+AFRX24 is a 2" 2-way Characterized Control Valve (CCV) with a Cv of 57. It features a spring return valve actuator and operates on 24V AC/DC. This valve is designed for chilled or hot water systems with up to 60% glycol content, offering precise control and reliable performance.

• 2-Way valve configuration
• Stainless steel ball and stem
• Spring return valve actuator

Product Highlights

This Belimo CCV is ideal for HVAC applications requiring accurate flow control and fail-safe operation.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B250+AFRX24

Technical Specifications

• Angle of Rotation: 90
• Cv: 57
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 2"
• Actuator Type: Spring return
• Control Type: On/Off
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: cable
• Manual Override: 5 mm hex crank (3/16" Allen) supplied
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): <20 s
• Running Time (Motor): 75 s / 90B0
• Voltage AC/DC: 24 V
• Actuator: AFRX24
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Type: Characterized Control Valve (CCV)
• Nema Rating: Nema 2
• Valve Piping: 2-Way
• Close-Off Rating: 100 PSI
• Ball and Stem Material: Stainless Steel
• Torque: 180 in-lb
• Spring Return Time: 20 Second
