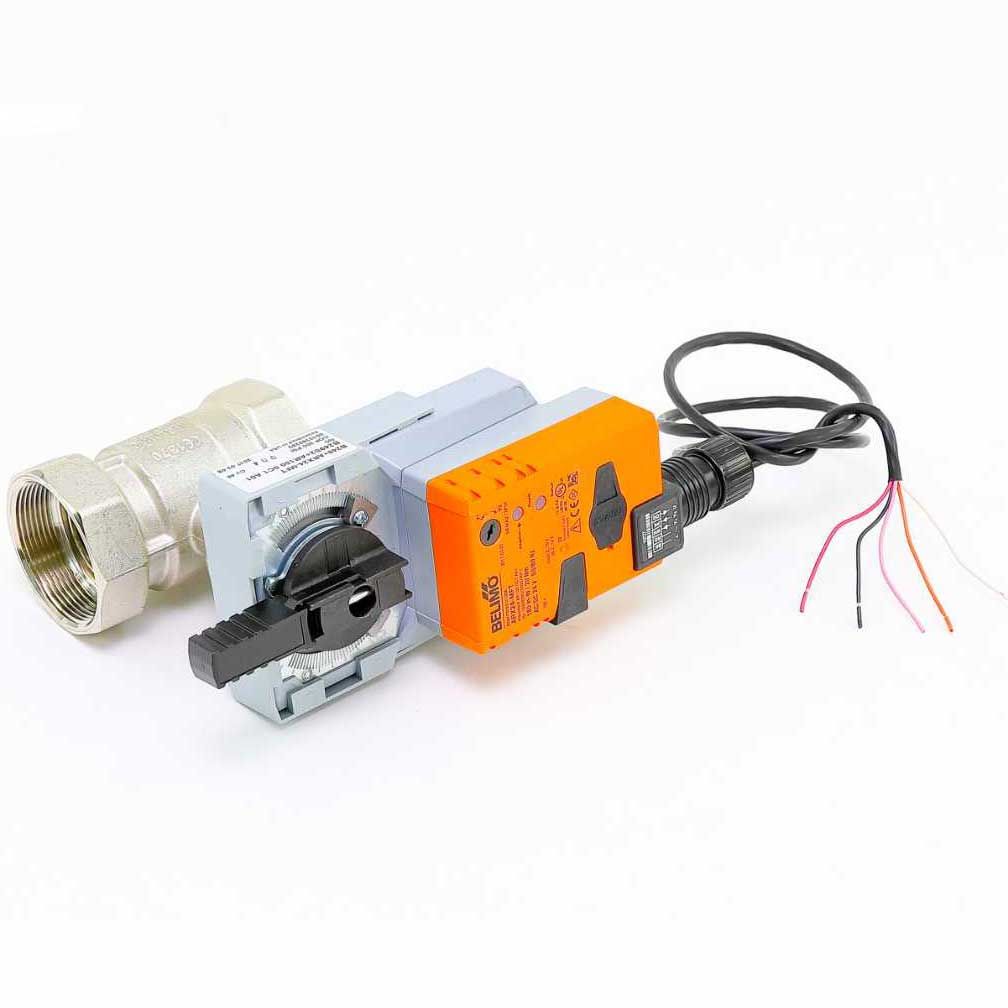

BELIMO B249+ARX24-MFT 2 Inch NPT 2-Way Valve Assembly

Product Description

The Belimo B249+ARX24-MFT is a two-way valve assembly featuring a 2 inch NPT connection, designed for precise control of water flow in HVAC systems. This assembly ensures optimal performance with a controllable valve (Cv) rating of 46, suitable for applications involving chilled or hot water up to 60% glycol.

• Includes a non-fail-safe motor actuator with MFT programming capabilities.
• Equipped with a stainless steel trim for durability and reliability in various environmental conditions.
• Operates on both 24 VAC and 24 VDC, making it versatile for different electrical systems.

Product Highlights

The B249+ARX24-MFT valve is primarily used in HVAC applications like air handling units and fan coil units, efficiently controlling heating and cooling coils. Its robust construction and non-spring return functionality make it a reliable choice for maintaining system performance and efficiency.

Product Information

Technical Specifications

• Valve Size: 2 inches
• Flow Coefficient (Cv): 46
• Actuator Type: Motorized, non fail-safe
• Control Type: MFT/Programmable
• Power Specifications: 24 VAC / 24 VDC
• Electrical Connection: Cable
• Angle of Rotation: 90 degrees
• Manual Override: External push button
