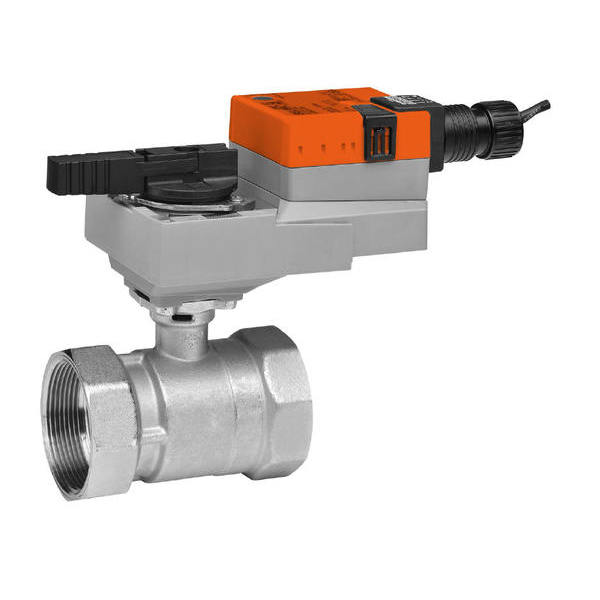

Belimo B249+ARX120-3 CCV Assembly, 2 Way, 2 in. NPT, 46 Cv

Product Description

The Belimo model B249+ARX120-3 is a characterized control valve designed for various HVAC applications. This valve is commonly suited for air handling units, fan coil units, and other cooling or heating systems. Its robust design includes a nickel plated brass body and a stainless steel ball and stem. The actuator operates with voltage from one hundred to two hundred forty VAC and is non-fail safe, providing efficient control in liquid flow systems.

• Two-way valve with a Cv of forty-six.
• Compatible with chilled or hot water systems.
• Direct coupled actuator for easy installation.

Product Highlights

This valve supports consistent operation in a hydronic system with variable flow requirements, ensuring optimal performance in heating and cooling applications.

Product Information

Standard Information

• Brand: Belimo
• Model Number: B249+ARX120-3

Technical Specifications

• Valve Size: 2 inches (50 mm)
• Control Type: Floating/3-point
• Power Supply: AC 100 to 240 V
• Angle of Rotation: 90 degrees
• End Fitting: Internal thread
• Fluid Type: Chilled or hot water (up to 60% glycol)
• Pressure Independent: No
• Trim Material: Stainless steel
