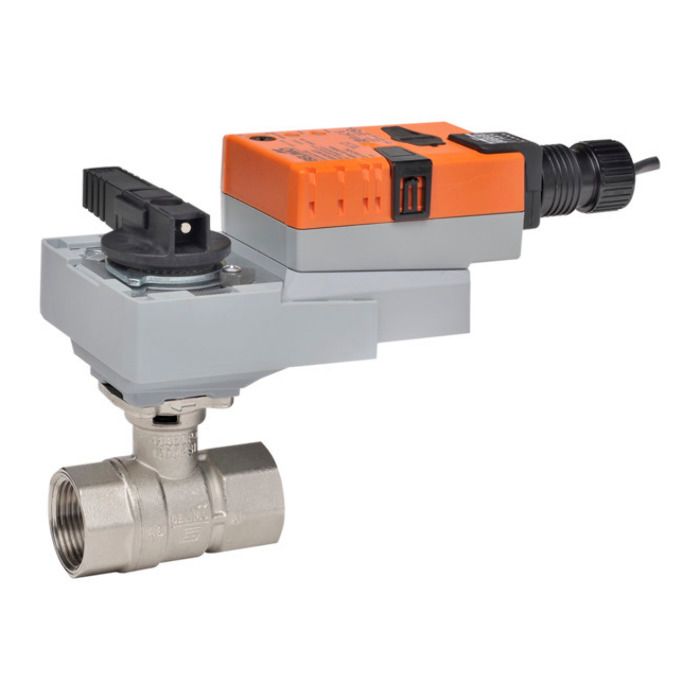

Belimo B248+ARX120-SR CCV Assembly 2 Way 2 in NPT 29 Cv

Product Description

The Belimo B248+ARX120-SR is a characterized control valve designed for efficient fluid regulation. It features a nickel-plated brass body with a stainless steel ball and stem. This valve is equipped with a direct coupled actuator and operates on a non-fail safe mechanism. The power range is from one hundred to two hundred forty VAC, making it suitable for a variety of HVAC applications.

• Direct coupled actuator for reliable performance.
• Operates with control signals of two to ten VDC or four to twenty mA.
• Compatible with chilled or hot water systems up to sixty percent glycol.

Product Highlights

This valve is ideal for use in building automation systems, providing precise control over water flow in heating and cooling applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B248+ARX120-SR

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 to 0
• Cv: 29
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 2 inches [50 mm]
• Actuator Type: Non fail-safe
• Control Type: DC 2 to 10 V
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Manual Override: External push button
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 4 W
• Running Time (Motor): 90 seconds / 90 degrees
• Voltage AC/DC: AC 100 to 240 V
