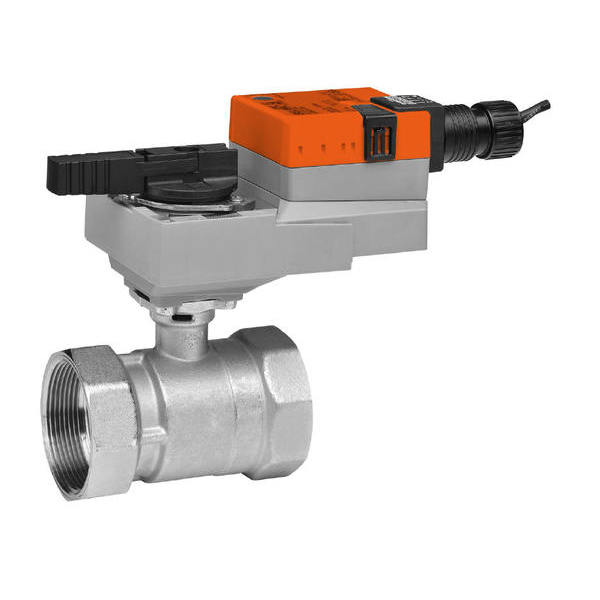

Belimo B248+ARB24-SR-T CCV Assembly 2 Way 2 in NPT 29 Cv

Product Description

The Belimo B248+ARB24-SR-T is a characterized control valve designed for use in HVAC applications. This valve is effective in both cooling and heating systems, providing efficient flow control. It features a two-way design, ideal for various air handling units and fan coil applications.

• Self-cleaning ball valve design for zero leakage
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit
• Modulating actuator with a power consumption of two-point-five watts

Product Highlights

The B248+ARB24-SR-T is suitable for hydronic systems requiring variable flow control.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B248+ARB24-SR-T

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 2.5 W Running, 0.4 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: Terminal Block
• Fluid: Chilled or hot water up to 60% glycol
