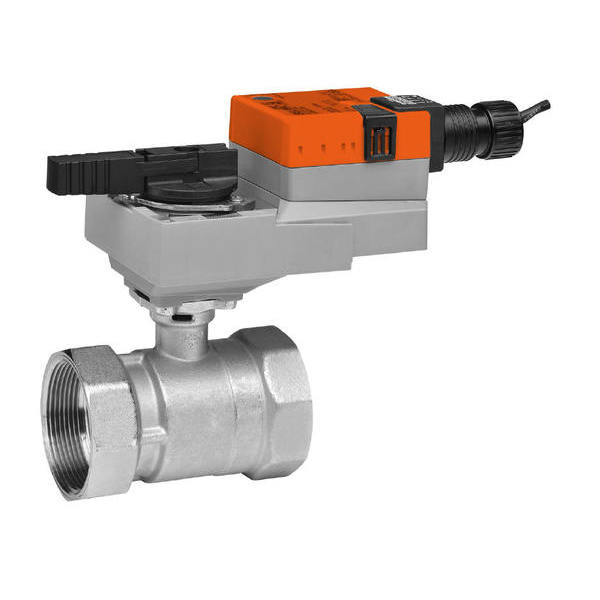

Belimo B248+ARB24-3-S CCV Assembly 2 Way 2 in NPT 29 Cv

Product Description

The Belimo B248+ARB24-3-S is a characterized control valve designed for HVAC applications. It features a nickel plated brass body and stainless steel ball and stem. This valve is ideal for managing fluid flow in heating and cooling systems. It operates with a direct coupled actuator and is suitable for 24 VAC or DC.

• Two-way valve with 29 Cv rating
• Non-fail safe actuator type
• Compatible with chilled or hot water up to 60% glycol

Product Highlights

This product provides precise control for HVAC systems, ensuring efficient operation in various applications.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B248+ARB24-3-S

Technical Specifications

• Valve Size: 2 inches (50 mm)
• Flow Coefficient (Cv): 29
• Angle of Rotation: 90 degrees
• Fluid Type: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Control Type: Floating/3-point
• Power Consumption: 0.5 W (holding), 2.5 W (running)
• Voltage: AC/DC 24 V
