Belimo B248 CCV, 2 Way, 2 in. NPT, 29 Cv

Product Description

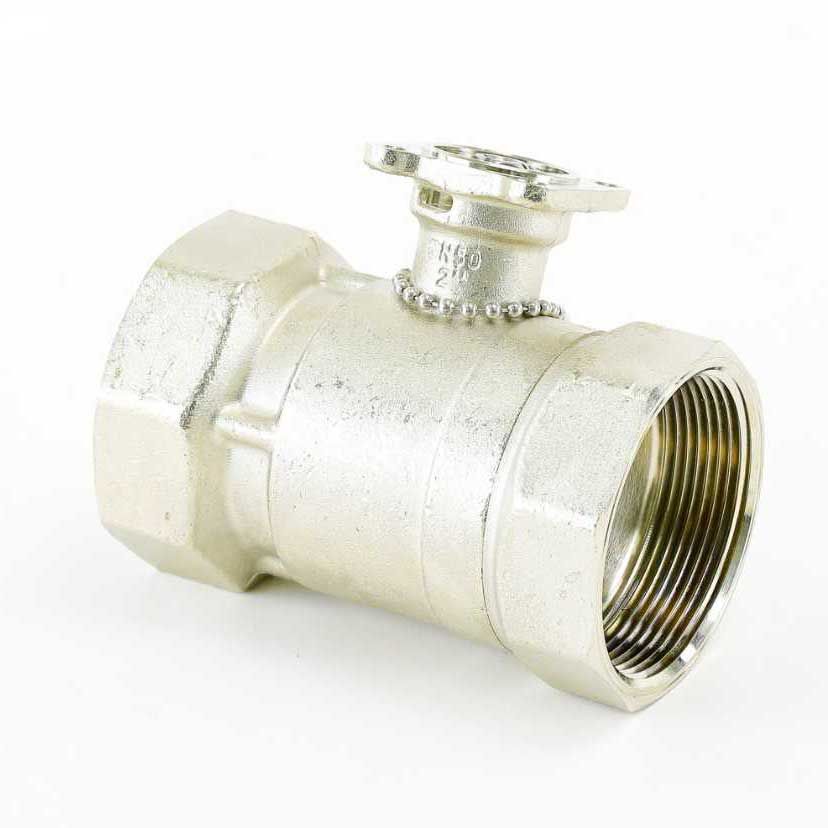

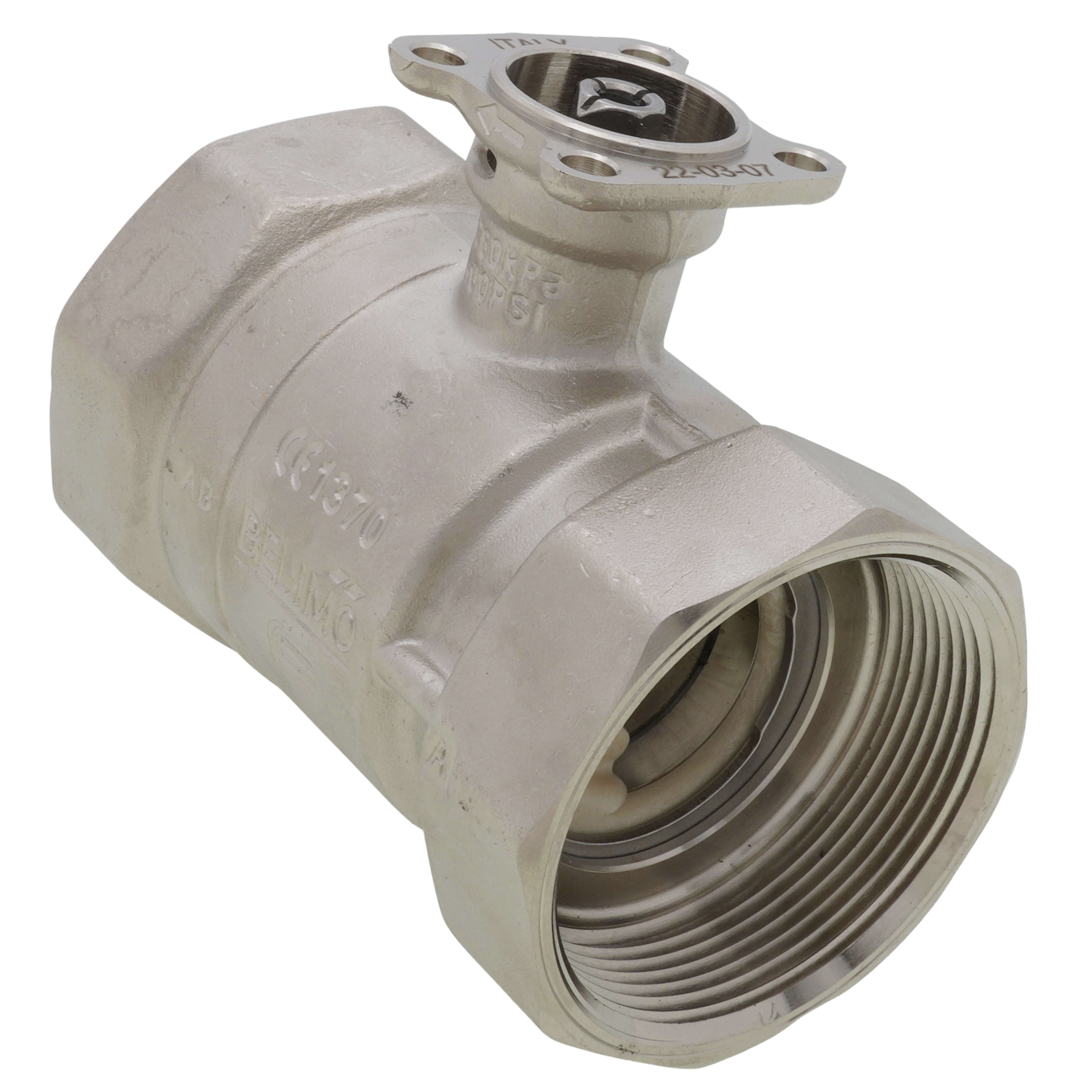

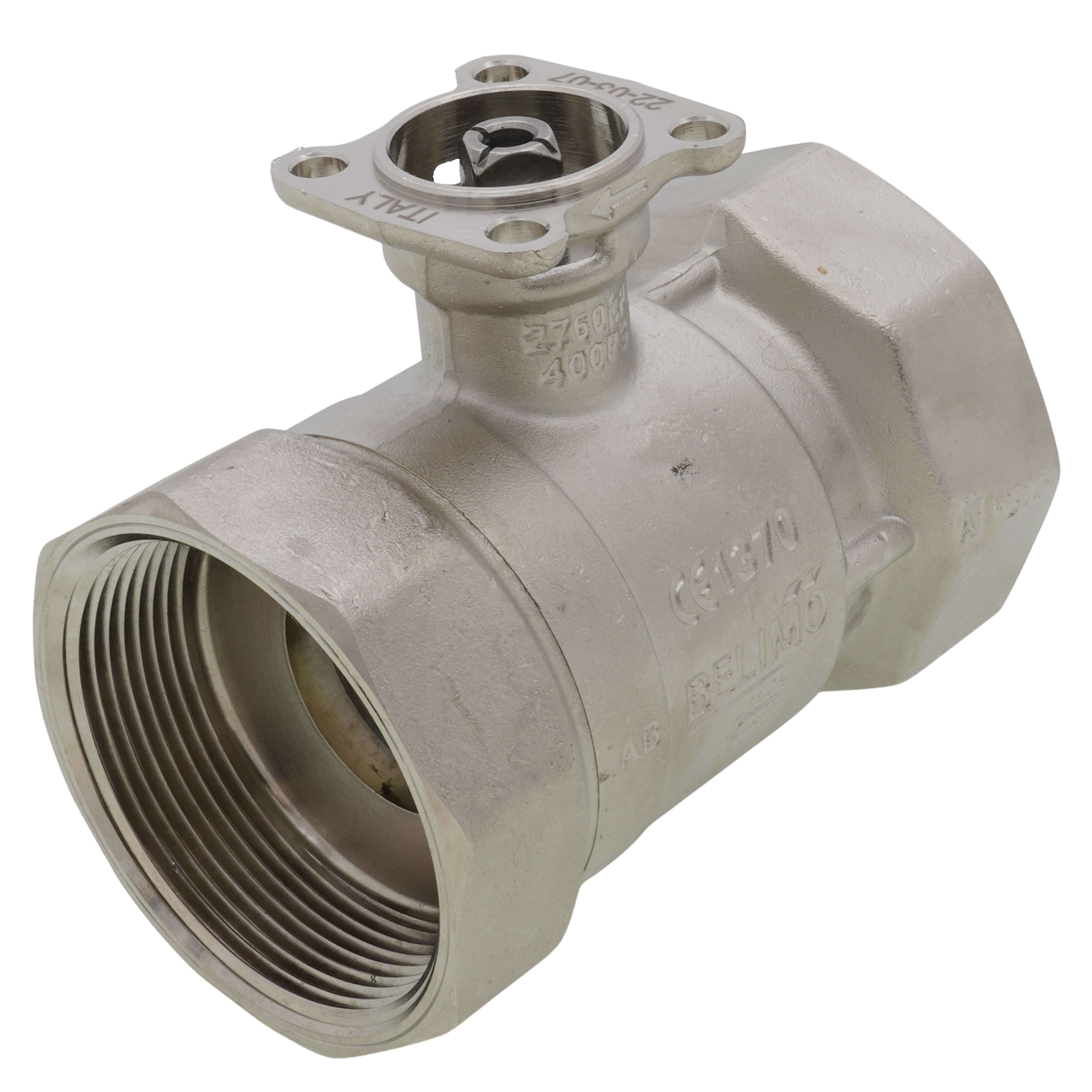

The Belimo B248 is a characterized control valve designed for two-way flow applications. This valve features a two-inch NPT connection and offers a flow coefficient (Cv) of 29. It is suitable for use in chilled and hot water systems, with a maximum temperature of 250 degrees Fahrenheit and can accommodate up to 60% glycol solutions.

• Constructed from forged brass with a nickel-plated finish for durability.
• Stainless steel ball and stem enhance resistance to corrosion.
• Economical operation with self-cleaning ball valve design, ensuring zero leakage.

Product Highlights

This valve is typically used in air handling units, fan coil units, and hydronic systems with variable flow, providing efficient temperature control.

Product Information

Standard Information

• Brand: Belimo
• MPN: B248

Technical Specifications

• Fluid: Chilled or hot water up to 60% glycol
• Flow Characteristic: Equal Percentage
• Valve Size: 2 inches
• End Fitting: Internal thread
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• Close-Off Pressure: 200 psi
• Trim: Stainless steel
• Body Pressure Rating: 400 psi
