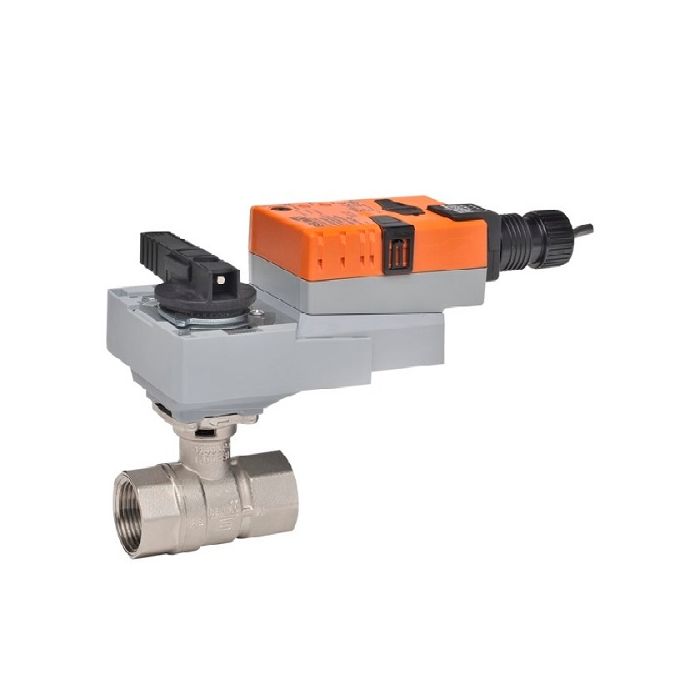

Belimo B240+ARX24-MFT CCV 1.5 Inch 2 Way 37 Cv Non-Spring 24V MFT Valve

Product Description

The Belimo B240+ARX24-MFT is a characterized control valve designed for precise flow control in HVAC systems. Engineered for reliability, this valve features a two-way flow, a flow coefficient (Cv) of 37, and operates with a 24V motorized fail transfer (MFT) actuator.

• Ideal for regulating air handling units in heating or cooling applications.
• Constructed with stainless steel trim and suitable for up to 60% glycol mixed water.
• Features external push button manual override for operational flexibility.

Product Highlights

This valve ensures consistent performance and is designed to function efficiently in variable flow hydronic systems. It's widely used in applications such as fan coil units, VAV box reheat coils, and bypass loops.

Product Information

Standard Information

• Brand: Belimo
• Category: HVAC, Hydronics, Actuators

Technical Specifications

• Valve Size: 1.5 inches
• Type: 2-way CCV
• Material: Stainless steel
• Electrical Connection: Cable
• Control Type: MFT/Programmable
• Power Consumption (Holding): 1.3 W
• Power Consumption (Running): 3.5 W
• Voltage: AC/DC 24V
