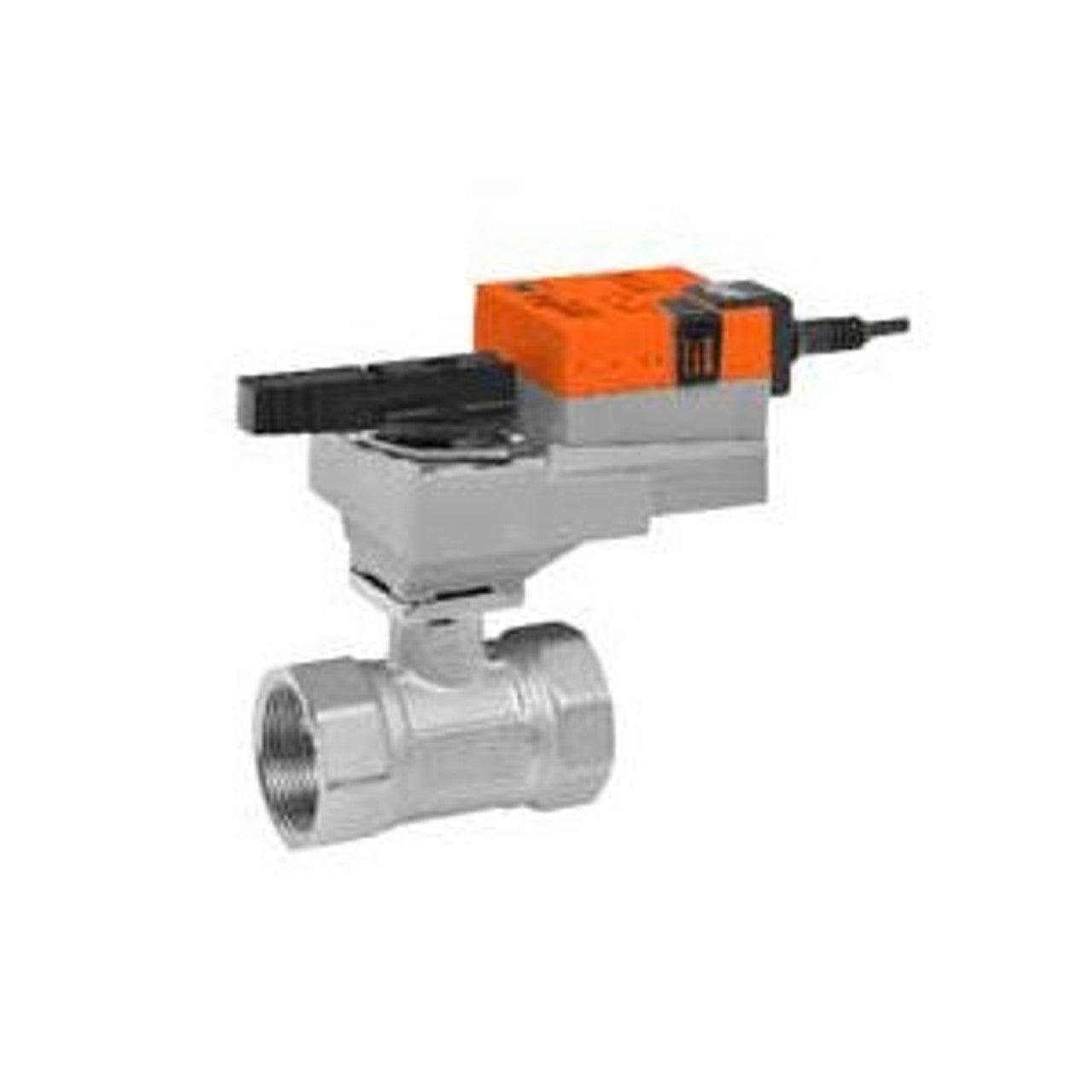

Belimo B240+NRQX24-MFT CCV Assembly 2 Way, 1-1/2 in. NPT, 37 Cv

Product Description

The Belimo B240+NRQX24-MFT is a characterized control valve designed for effective modulating control in various HVAC applications. This valve typically finds its use in air handling units and fan coil units, ensuring efficient heating or cooling. It operates with a direct coupled actuator and requires a power supply of twenty-four VAC.

• Ball valve design ensures self-cleaning and minimal leakage.
• Can handle water temperatures up to two hundred fifty degrees Fahrenheit.
• Designed with Multi-Function Technology for versatile applications.

Product Highlights

This valve is suitable for use in hydronic systems with variable flow, making it essential for modern HVAC installations.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B240+NRQX24-MFT

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled, hot water, up to 60% glycol
• Power Consumption: 13 W running, 1.5 W holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 3 feet 18 GA plenum cable with 1/2 inch conduit connector
