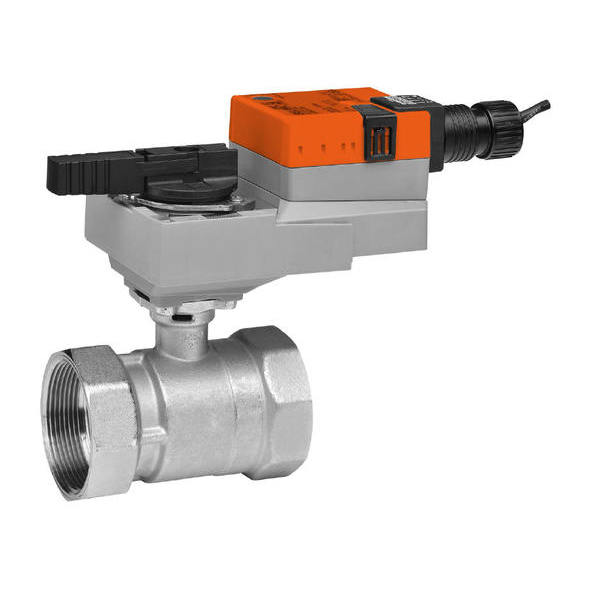

Belimo B240+ARX24-3 CCV Assembly 2 Way 1 1/2 in NPT 37 Cv

Product Description

The Belimo B240+ARX24-3 is a characterized control valve designed for efficient flow control. This valve features a nickel plated brass body, stainless steel ball and stem, and a direct coupled actuator. It is suitable for use with chilled or hot water and can handle mixtures of water with up to sixty percent glycol.

• Angle of rotation is ninety degrees.
• Power supply is twenty-four VAC or DC.
• Control type includes floating and three-point options.

Product Highlights

This control valve provides reliable performance and is ideal for HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B240+ARX24-3

Technical Specifications

• Valve Size: 1.5 inches
• Cv: 37
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Operating Voltage: AC/DC 24 V
• Running Time (Motor): 90 seconds / 90 degrees
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 2.5 W
