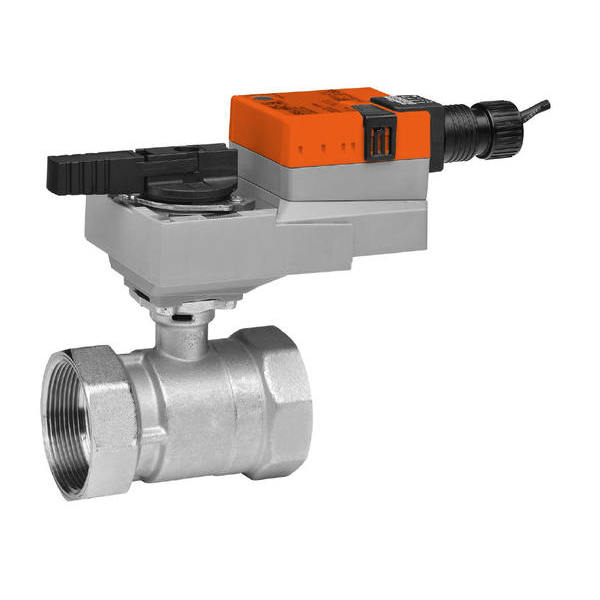

Belimo B240+ARX120-3 CCV Assembly 2 Way 1 1/2 in NPT 37 Cv

Product Description

The Belimo B240+ARX120-3 is a characterized control valve designed for efficient fluid control. It features a nickel-plated brass body and a stainless steel ball and stem. This unit operates with a direct coupled actuator and supports power between one hundred to two hundred forty volts AC. The actuator is non-fail safe and is suitable for on/off and floating point control.

• Nickel plated brass body
• Stainless steel ball and stem
• AC voltage range of 100 to 240

Product Highlights

This valve is ideal for HVAC applications requiring precise flow control. It can handle chilled or hot water with up to sixty percent glycol. It also integrates well with existing building automation systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B240+ARX120-3

Technical Specifications

• Valve Size: 1.5 inches
• Flow Coefficient (Cv): 37
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Control Type: Floating/3-point
• Voltage AC/DC: AC 100 to 240 volts
• Degree of Protection: IP54 NEMA 2
