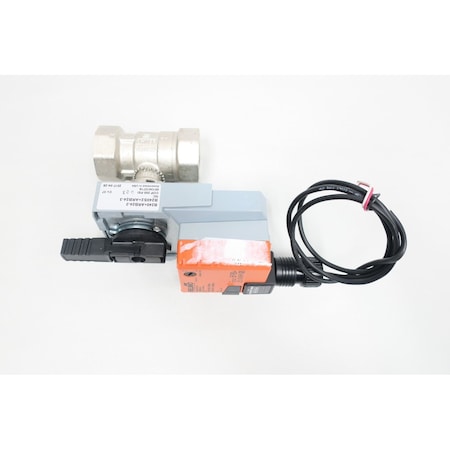

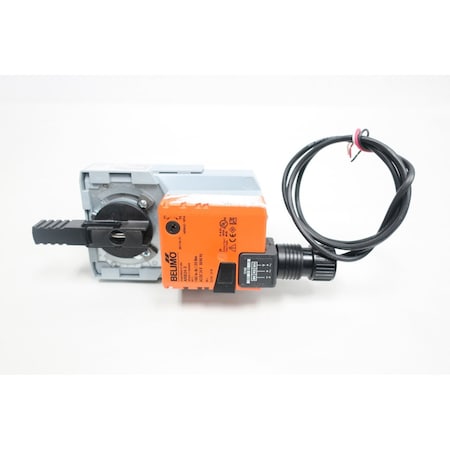

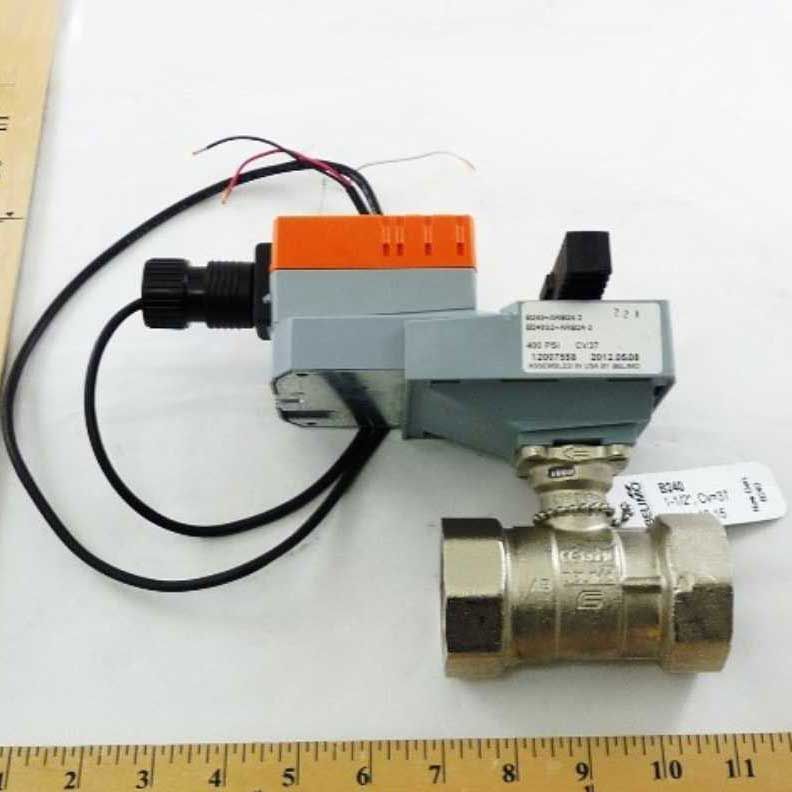

Belimo B240+ARB24-3 Characterized Control Valve 1.5 Inch 2-Way 37 Cv Non-Spg 24V Floating

Product Description

The Belimo B240+ARB24-3 Characterized Control Valve is built for HVAC systems, delivering precise control over water flow. This 1.5-inch, 2-way valve features a 37 Cv and operates on a 24V floating control signal.

• 1.5-inch valve size
• 2-way configuration with stainless steel trim
• Operates on chilled or hot water up to 60% glycol

Product Highlights

Designed for efficient HVAC systems, the Belimo B240+ARB24-3 valve offers accurate flow control and compatibility with various water types.

Product Information

Standard Information

• Brand: Belimo
• MPN: B240+ARB24-3

Technical Specifications

• Valve Size: 1.5 inches
• Configuration: 2-way
• Cv: 37
• Trim: Stainless steel
• Fluid: Chilled or hot water up to 60% glycol
• Control Type: Floating/3-point
• Voltage AC/DC: AC/DC 24V
• Manual Override: External push button
• Angle of Rotation: 90 degrees
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Running Time (Motor): 90 seconds/90 degrees
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 2.5 W
• End Fitting: Internal thread
• Actuator Type: Non fail-safe
• Electrical Connection: Cable
