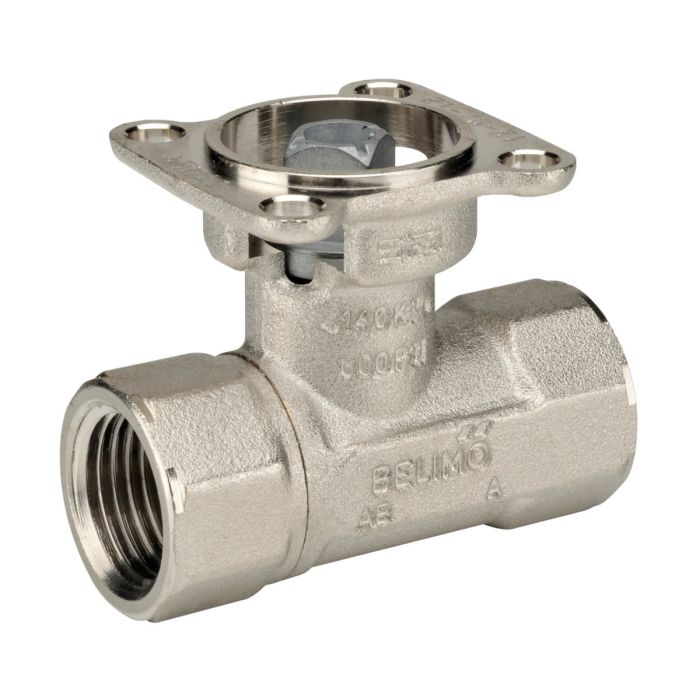

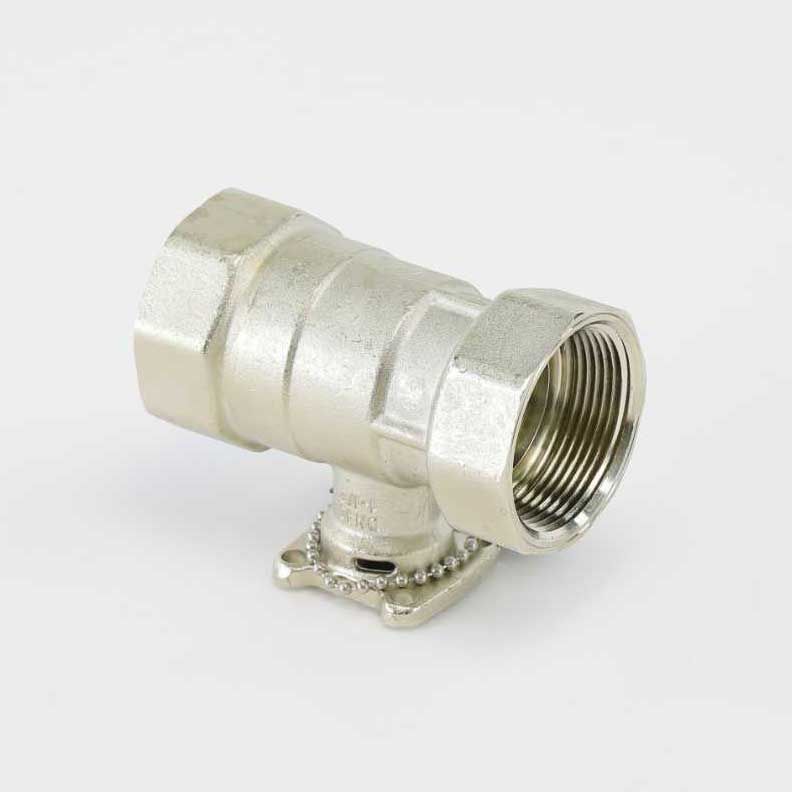

Belimo B240 CCV 2 Way 1-1/2 in NPT 37 Cv

Product Description

The Belimo B240 is a characterized control valve used in various HVAC applications. This two-way valve has a one and a half inch NPT connection and a flow coefficient of thirty-seven. Made of nickel plated forged brass, it features a stainless steel ball and stem for enhanced durability. It is suitable for hydronic systems with variable flow.

• Valve suitable for heating and cooling coils.
• Self-cleaning ball valve design ensures zero leakage.
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve is ideal for use in air handling units, unit ventilators, and VAV box reheat coils.

Product Information

Standard Information

• Brand: Belimo
• MPN: B240

Technical Specifications

• Flow Capacity (Cv): 37
• Valve Size: 1.5 inches
• Operating Conditions: 0°F to 250°F
• Close-Off Pressure: 200 psi
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
