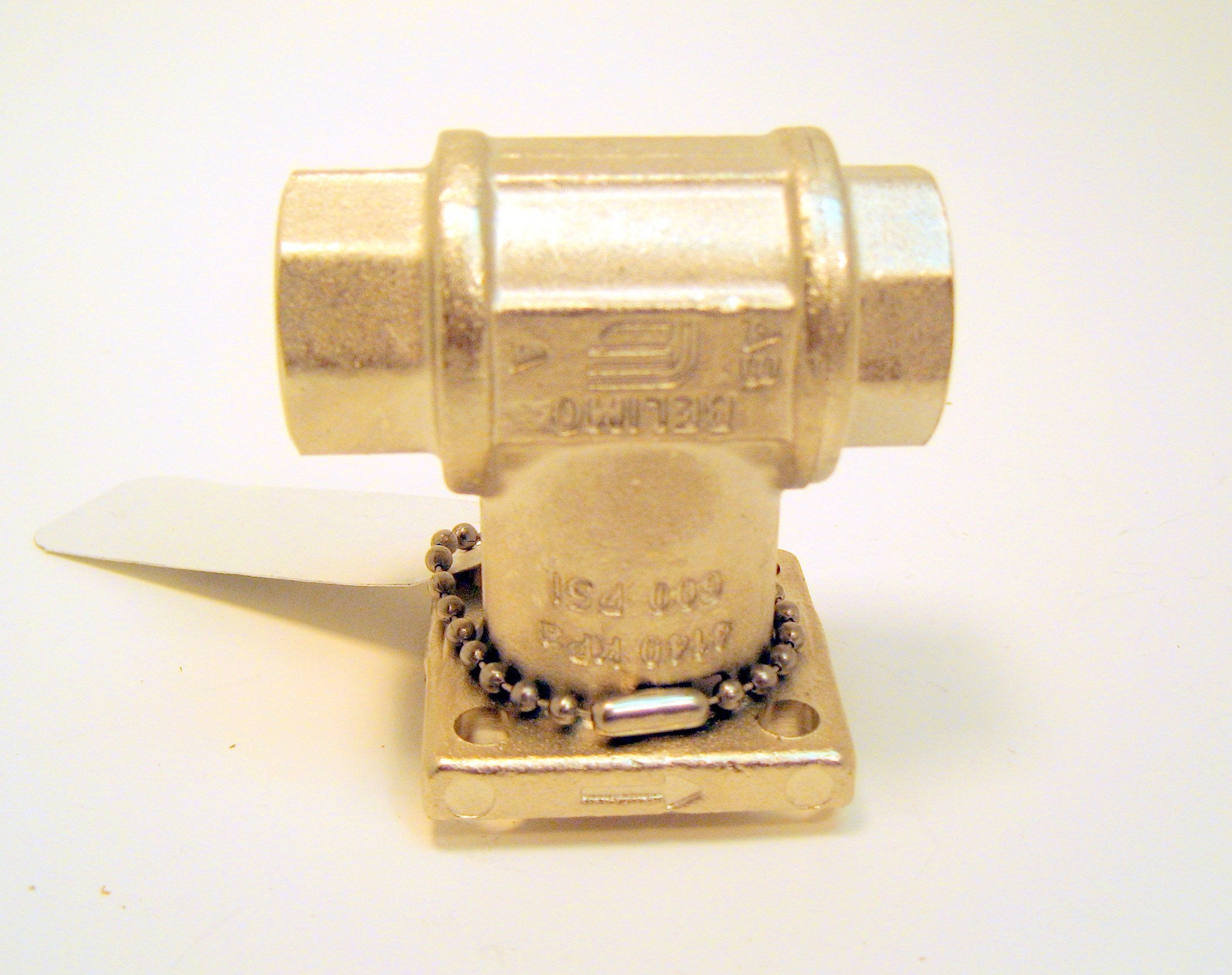

Belimo B239+ARB24-3 CCV 1.5 2 Way 29 Cv w/ Non-Spg 24V Floating

Product Description

Belimo B239+ARB24-3 is a characterized control valve designed for various applications. It operates with a flow range and is suitable for both chilled and hot water systems up to sixty percent glycol. The valve features a two-way pattern, making it versatile for different setups.

• Rated for a maximum of twenty-nine Cv
• Operates on a voltage of twenty-four V DC
• Non fail-safe actuator type

Product Highlights

The valve is efficient in controlling fluid flow and provides reliable performance for HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B239+ARB24-3

Technical Specifications

• Valve Size: 1.5 inches
• Cv: 29
• Fluid: Chilled or hot water up to 60% glycol
• Angle of Rotation: 90 degrees
• Electrical Connection: cable
• Control Type: Floating/3-point
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 2.5 W
• Running Time (Motor): 90 seconds / 90 degrees
