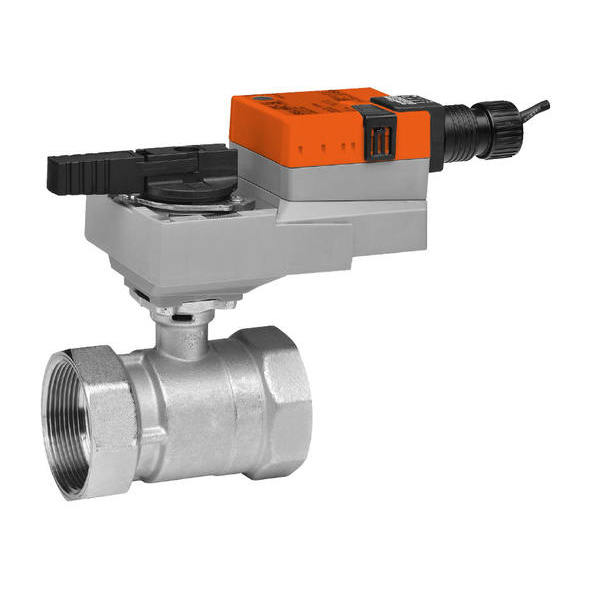

Belimo B239+NRQX24-MFT CCV Assembly 2 Way 1-1/2 in NPT 29 Cv

Product Description

The Belimo B239+NRQX24-MFT is a characterized control valve designed for various HVAC applications. This valve is suitable for use in air handling units and fan coil units. It features a two-way design with a flow coefficient of twenty-nine, making it ideal for heating and cooling systems.

• Utilizes multi-function technology for versatile operation.
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.
• Ball valve design promotes self-cleaning and prevents leakage.

Product Highlights

The valve is suitable for hydronic systems with variable flow and operates effectively in a temperature range of negative twenty-two degrees Fahrenheit to one hundred twenty-two degrees Fahrenheit.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B239+NRQX24-MFT

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 13 W Running, 1.5 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
