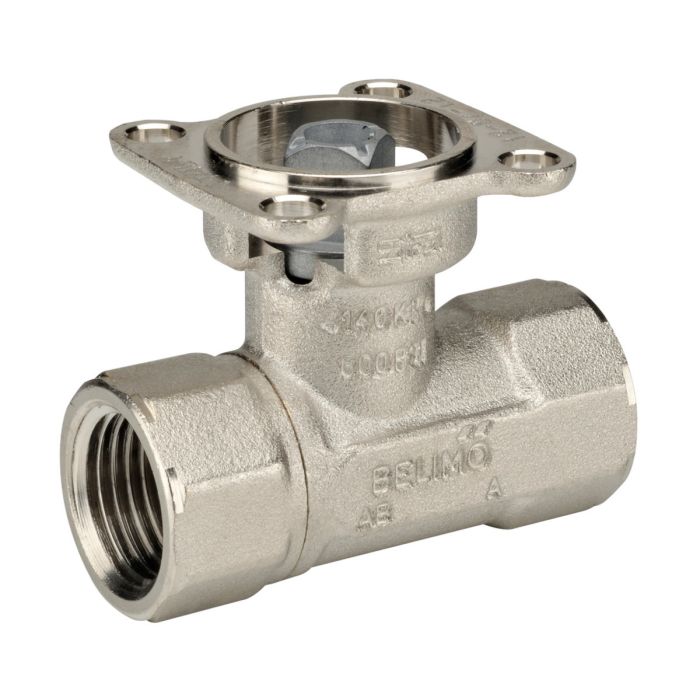

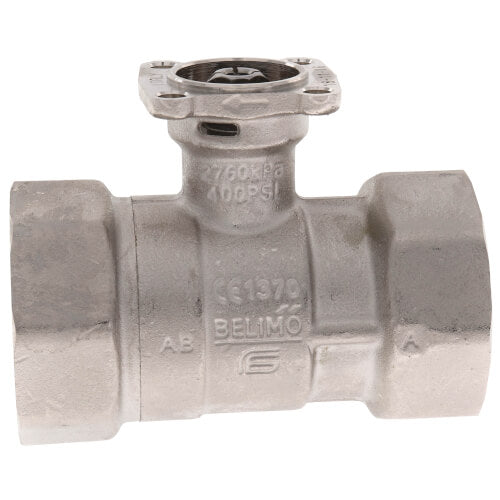

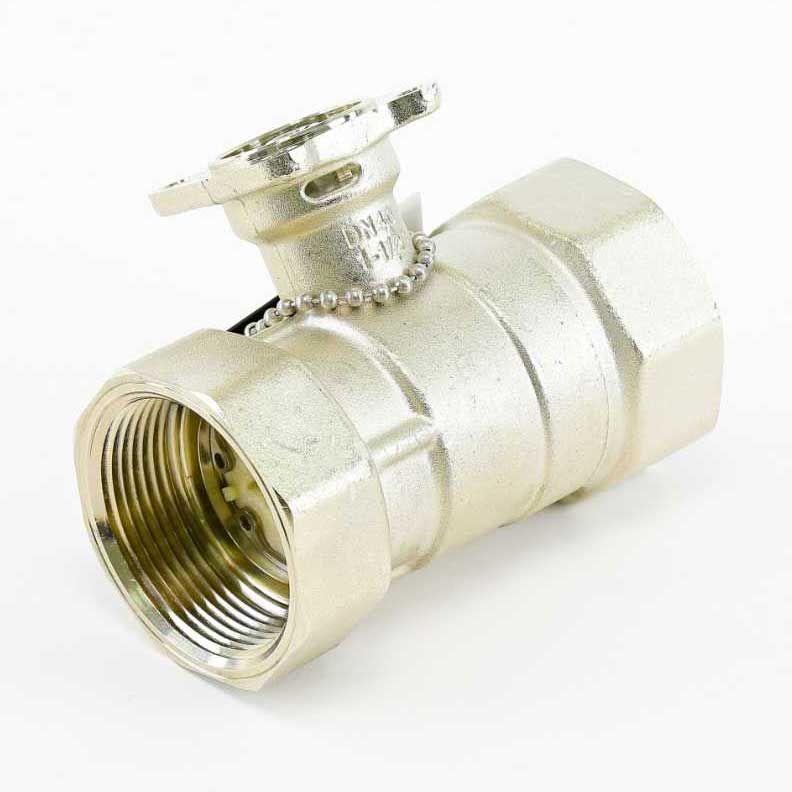

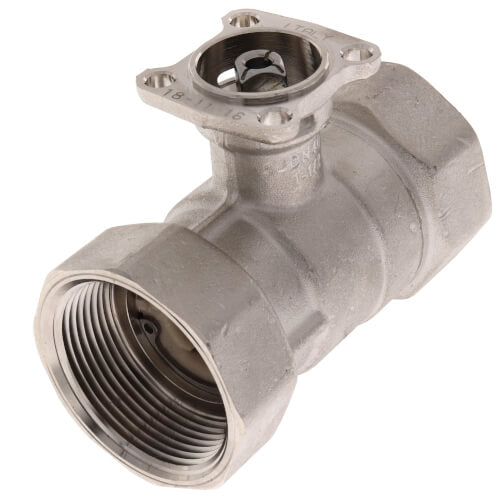

Belimo B239 CCV 2 Way 1-1/2 In NPT 29 Cv

Product Description

The Belimo B239 is a characterized control valve designed for chilled or hot water applications. This unit is effective in regulating flow in air handling units, fan coil units, and various hydronic systems with variable flow capabilities. This two-way valve features a forged brass body and stainless steel ball and stem, ensuring durability and reliability. In addition, it has a Cv rating of twenty-nine, making it suitable for a range of applications, including heating and cooling coils.

• Flow Capacity: 29 Cv
• Close-Off Pressure: 200 psi
• Operating Temperature: Up to 250 F

Product Highlights

This valve offers an equal percentage flow characteristic for consistent temperature control, optimizing energy consumption while preventing leakage.

Product Information

Standard Information

• Brand: Belimo
• MPN: B239

Technical Specifications

• Valve Size: 1.5 inches
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Trim Material: Stainless steel
• End Fitting: Internal thread
• Pattern: 2-way
• Pressure Independent: No
• Controllable Flow Range: 75B0
