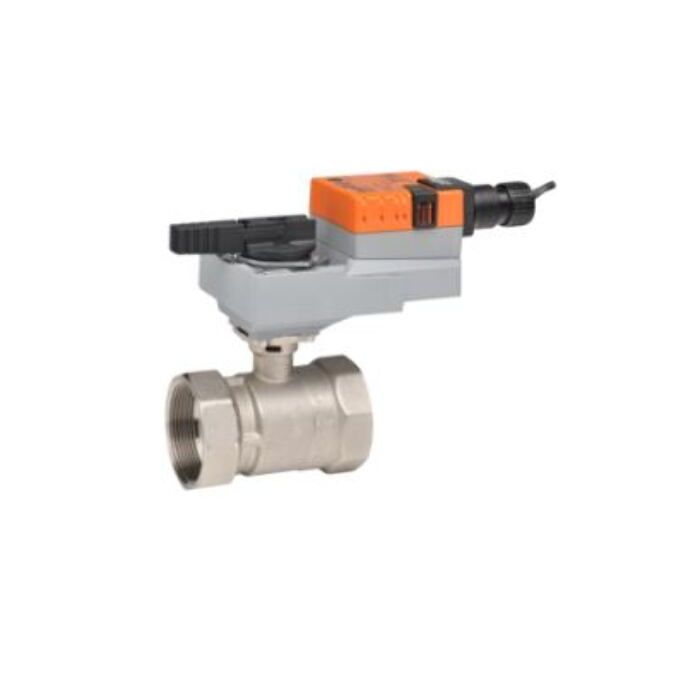

Belimo B238+NRQX24-MFT CCV Assembly 2 Way 1 1/2 in NPT 19 Cv

Product Description

The Belimo B238+NRQX24-MFT is a characterized control valve designed for various HVAC applications. This product features a nickel-plated brass body, stainless steel ball and stem, and a direct coupled actuator. It operates without fail-safe and is powered by 24 VAC/DC. Multi-function technology makes it suitable for a wide range of systems.

• Nickel-plated brass body construction
• Operates with a 19 Cv flow rate
• Non fail-safe actuator with external manual override

Product Highlights

This valve is ideal for chilled or hot water systems, allowing for precise control over fluid flow in heating and cooling applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B238+NRQX24-MFT

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 19
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 1.5 inches
• Actuator Type: Non fail-safe
• Control Type: MFT/Programmable
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Manual Override: External push button
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 13 W
• Voltage AC/DC: 24 V
