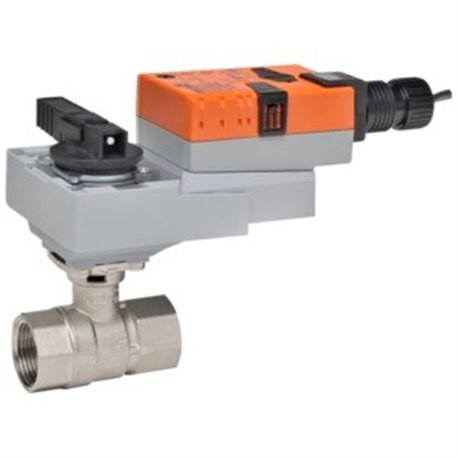

Belimo B238+ARX120-3 CCV Assembly 2 Way 19 Cv 1 1/2 in. NPT Replacement MPN

Product Description

Belimo B238+ARX120-3 is a characterized control valve designed for efficient fluid control in HVAC systems. This valve features a nickel-plated brass body and a stainless steel ball and stem for enhanced durability. It operates on a voltage range of 100 to 240 VAC with on/off and floating point control capabilities.

• Two-way valve design for versatile installation.
• Flow capacity rated at 19 Cv.
• Compatible with chilled or hot water systems up to 60% glycol.

Product Highlights

Designed for HVAC systems, the valve maintains precise fluid control with minimal pressure drop. Its non-fail safe actuator provides reliable operation in various commercial applications.

Product Information

Standard Information

• Brand: Belimo
• Model Number: B238+ARX120-3

Technical Specifications

• Valve Size: 1.5 inches [40]
• Cv Rating: 19
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Pressure Independent: No
• Angle of Rotation: 90 degrees
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Voltage AC/DC: AC 100 to 240 V
