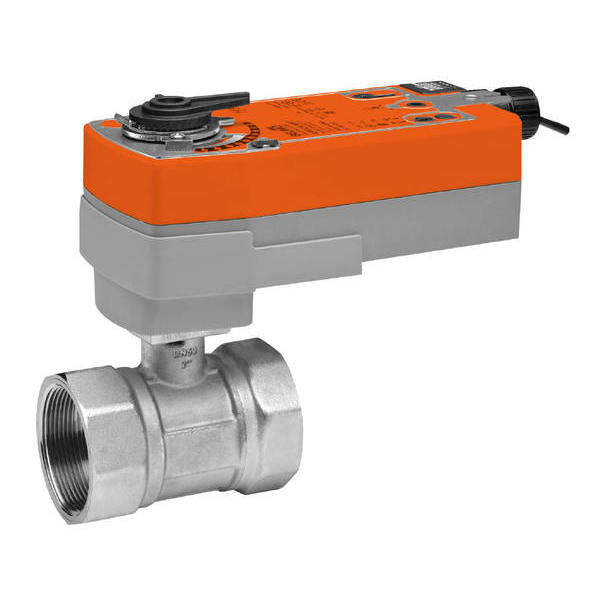

Belimo B238+AFRX24-MFT-S CCV Assembly 2 Way 1-1/2 in NPT 19 Cv

Product Description

The Belimo B238+AFRX24-MFT-S is a Characterized Control Valve used in HVAC systems. It is designed for air handling units and fan coil units, optimizing heating and cooling processes. This valve features a forged brass body and stainless steel ball and stem, providing durability. It is equipped with a direct coupled actuator using a spring return. The actuator operates at 180 in-lb and 24 VAC, making it suitable for various applications.

• Built for air handling units and fan coils.
• Rated for water temperatures up to 250 F.
• Features self-cleaning and zero leakage design.

Product Highlights

The valve is ideal for use in hydronic systems with variable flow. Its MFT functionality allows for diverse applications in HVAC control systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B238+AFRX24-MFT-S

Technical Specifications

• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: Two 3 ft. 18 GA appliance cables with 1/2 in. conduit connectors
• Power Consumption: 7.5 W running, 3 W holding
• Auxiliary Switch: 2 x SPDT
• Service: Chilled, hot water, up to 60% glycol
• Housing: NEMA 2, IP54, UL enclosure type 2
