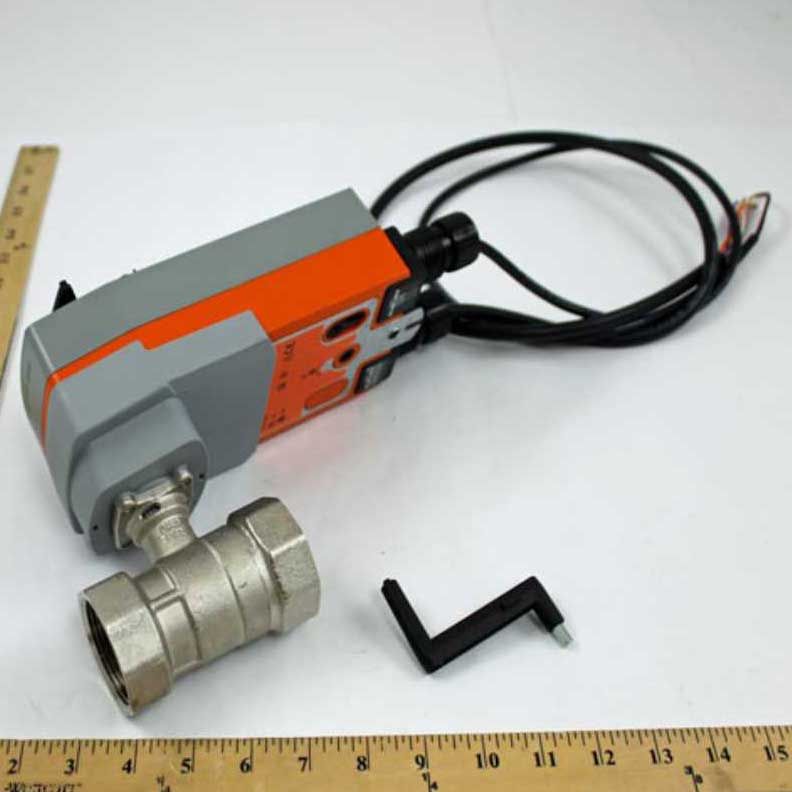

Belimo B238+AFRB24-S Two-Way Valve Assembly 1-1/2 Inch NPT, 19 Cv, With Spring Return 24V

Product Description

Explore the Belimo B238+AFRB24-S, a 1.5-inch NPT two-way valve assembly engineered for precision and reliability in controlling fluid flow. Constructed with a robust stainless steel trim, this valve is designed for longevity and performance.

• Simplified operation with on/off control
• Spring return actuator ensures reliable functionality
• Compatible with both 24 VAC and 24 VDC power sources

Product Highlights

Featuring a Cv rating of 19, this valve assembly provides efficient flow control suited for various applications in the HVAC and plumbing sectors. The integrated motor and actuator are optimized for smooth operation, complemented by an auxiliary switch for enhanced system integration.

Product Information

Technical Specifications

• Connection Type: 1.5 inch NPT
• Control Type: On/Off
• Actuation: Spring return
• Electrical Compatibility: 24 VAC/VDC
• Body Material: Stainless Steel
• Torque: 180 in-lb
