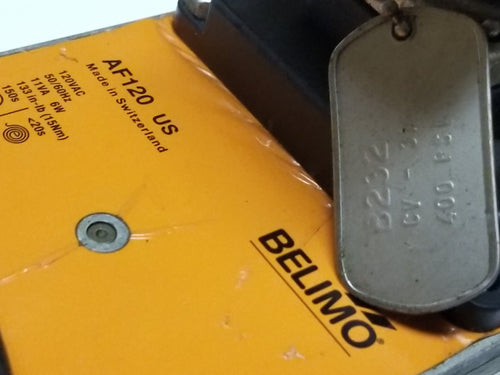

Belimo B232+AF120-S Characterized Control Valve Stainless Steel Ball and Stem

Belimo B232+AF120-S Characterized Control Valve Stainless Steel Ball and Stem

Description:
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable fl ow.

Specifications:
Belimo Part Number: B232+AF120-S US
Torque: 133 in-lb [15 Nm]
Valve Size: 1.25
Flow Pattern: 2 Way
Flow Characteristic: equal percentage
Power Supply: 120 VAC 10%, 50/60 Hz
Running Time (motor): 150 seconds, independent of load
Running Time (fail-safe): <20 seconds
