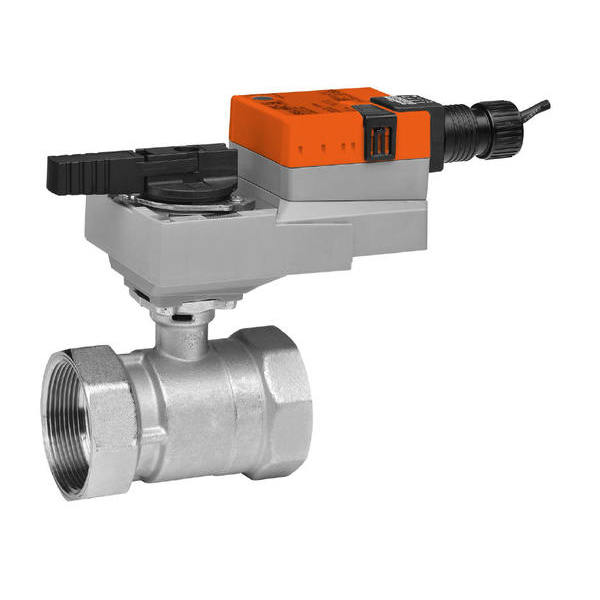

Belimo B232+ARX120-3 CCV Assembly 2 Way 1 1/4 in NPT 37 Cv

Product Description

The Belimo B232+ARX120-3 is a characterized control valve designed for HVAC applications. It features a nickel-plated brass body with a stainless steel ball and stem. This valve operates with a direct coupled actuator, requiring a voltage of one hundred to two hundred forty VAC. It supports on/off and floating point control.

• Nickel-plated brass body for durability
• Stainless steel ball and stem
• Direct coupled actuator for reliable operation

Product Highlights

This control valve is essential for managing the flow of chilled or hot water in HVAC systems. It is not pressure independent and is suitable for systems that require precise flow control.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B232+ARX120-3

Technical Specifications

• Cv: 37
• Valve Size: 1.25 inches
• Control Type: Floating/3-point
• Fluid: Chilled or hot water up to 60% glycol
• Electrical Connection: Cable
• Manual Override: External push button
• Angle of Rotation: 90 degrees
• Voltage AC/DC: AC 100-240 V
