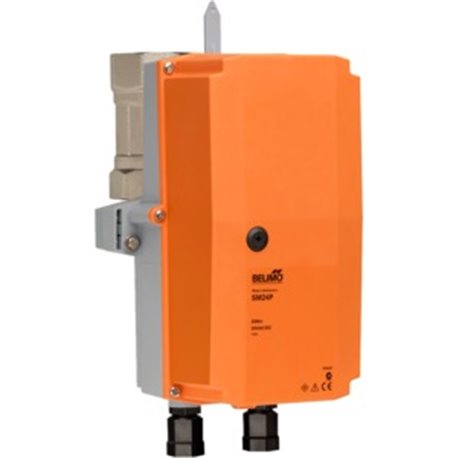

Belimo B231+ARX24-SR-T N4 CCV Assembly 2 Way 1-1/4 in. NPT 37 Cv

Product Description

The Belimo B231+ARX24-SR-T N4 is a characterized control valve used in HVAC systems. It is designed for air handling units heating or cooling coils and fan coil unit heating or cooling coils. This valve is suitable for use in a hydronic system with variable flow. Its ball valve design offers self-cleaning and zero leakage.

• Rated for water temperatures up to two hundred fifty degrees Fahrenheit
• IP66/67 and NEMA 4X rated enclosure
• Direct coupled actuator with modulating control

Product Highlights

This valve is a robust choice for reliable control in HVAC applications, ensuring efficient operation in various conditions. Its ability to function in chilled and hot water systems makes it versatile for different setups.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B231+ARX24-SR-T N4

Technical Specifications

• Power Consumption: 2.5 W Running, 0.4 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: Terminal Block
• Valve Size: 1.25 inches
• Trim: Stainless steel
• Pattern: 2-way
