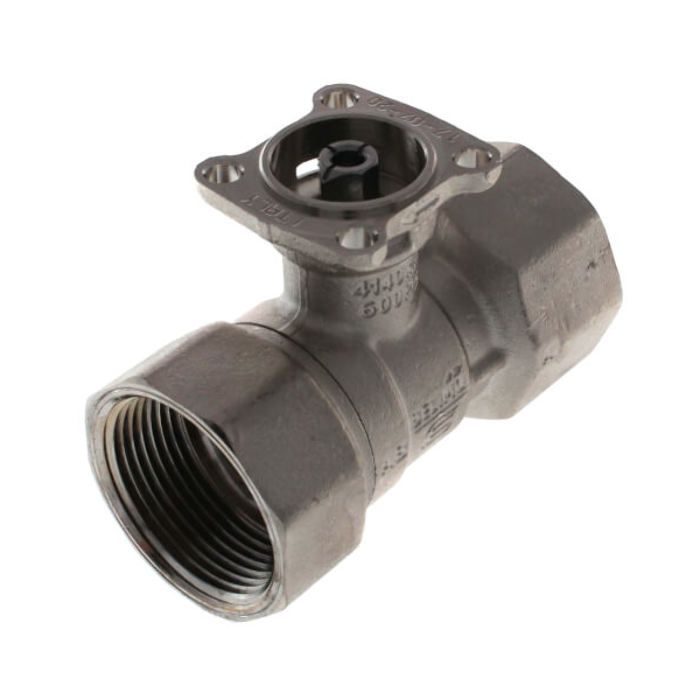

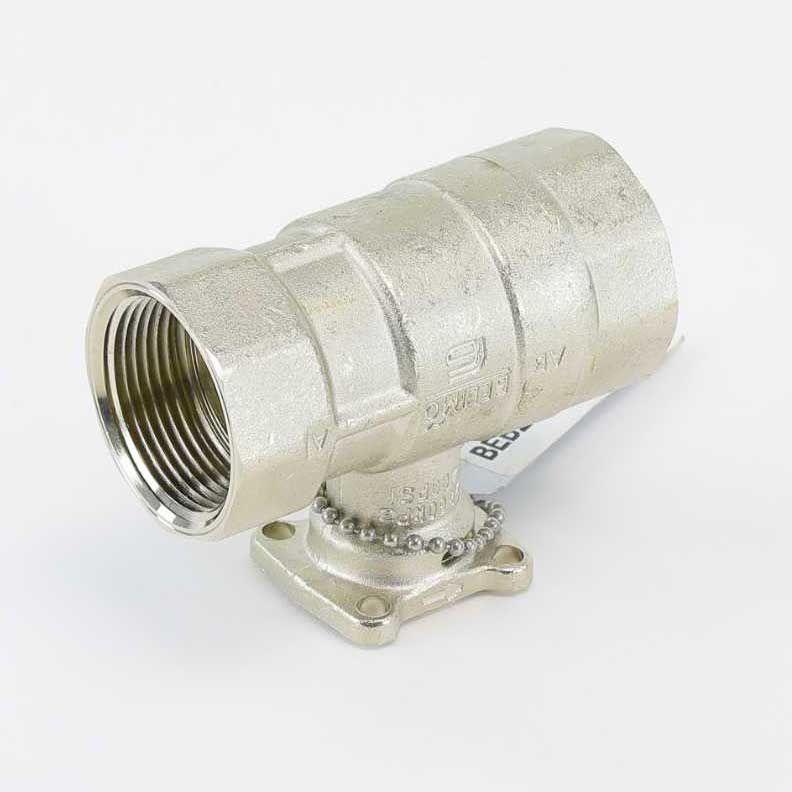

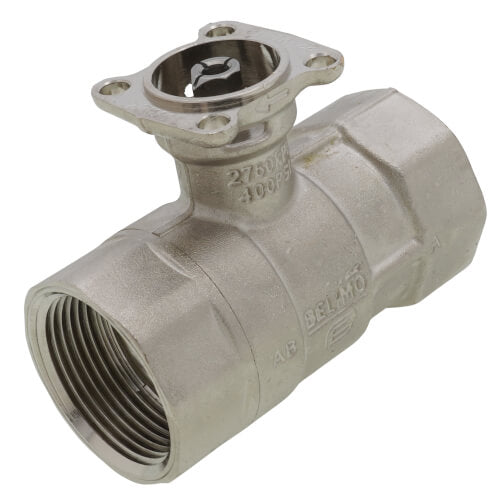

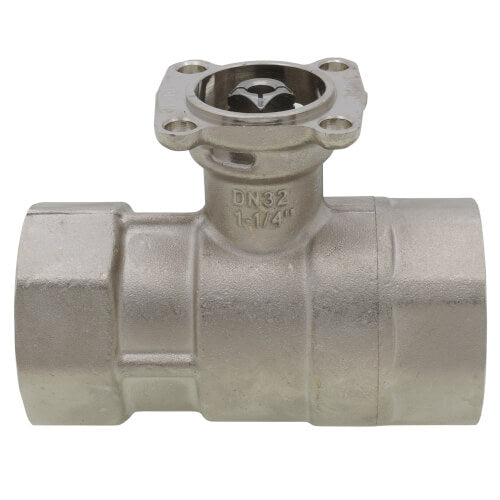

Belimo B231 CCV 2 Way 1-1/4 in NPT 25 Cv

Product Description

The Belimo B231 is a characterized control valve designed for HVAC applications. It measures 1-1/4 inches in NPT connection size and has a flow capacity of 25 Cv. This valve is made from forged brass with a nickel-plated brass body and features stainless steel ball and stem for enhanced durability and performance.

• Self-cleaning ball valve design
• Suitable for hydronic heating and cooling systems
• Rated for water temperatures up to 250 F

Product Highlights

The Belimo B231 valve provides reliable operation in air handling units and fan coil units. It supports variable flow in hydronic systems, optimizing energy efficiency.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B231

Technical Specifications

• Service: Chilled, hot water, up to 60% glycol
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal percentage
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• Connection Type: Female threaded
• Body Pressure Rating: 400 psi
• Weight: 1.65 lbs
• Dimensions: 3.4 inches x 4.3 inches x 1.95 inches
