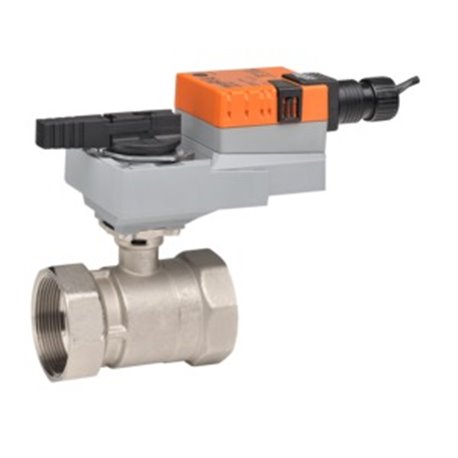

Belimo B230+LRX24-MFT CCV Assembly 2 Way 1-1/4 in NPT 19 Cv

Product Description

The Belimo B230+LRX24-MFT is a characterized control valve designed for HVAC applications. It features a two-way configuration intended for use with cooling and heating systems, particularly in air handling units and fan coils. The valve incorporates multi-function technology and operates on twenty-four VAC power.

• Constructed with forged brass and stainless steel components.
• Ball valve design ensures self-cleaning and eliminates leakage.
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve is essential for regulating flow in hydronic systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B230+LRX24-MFT

Technical Specifications

• Valve Size: 1.25 inches
• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 200 psi
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Power Consumption: 2.5 W running, 1.2 W holding
• Electrical Connection: 18 GA plenum rated cable with 1/2 inch conduit connector
• Housing Rating: NEMA 2, IP42
• Service Fluid: Chilled, hot water, up to 60% glycol
