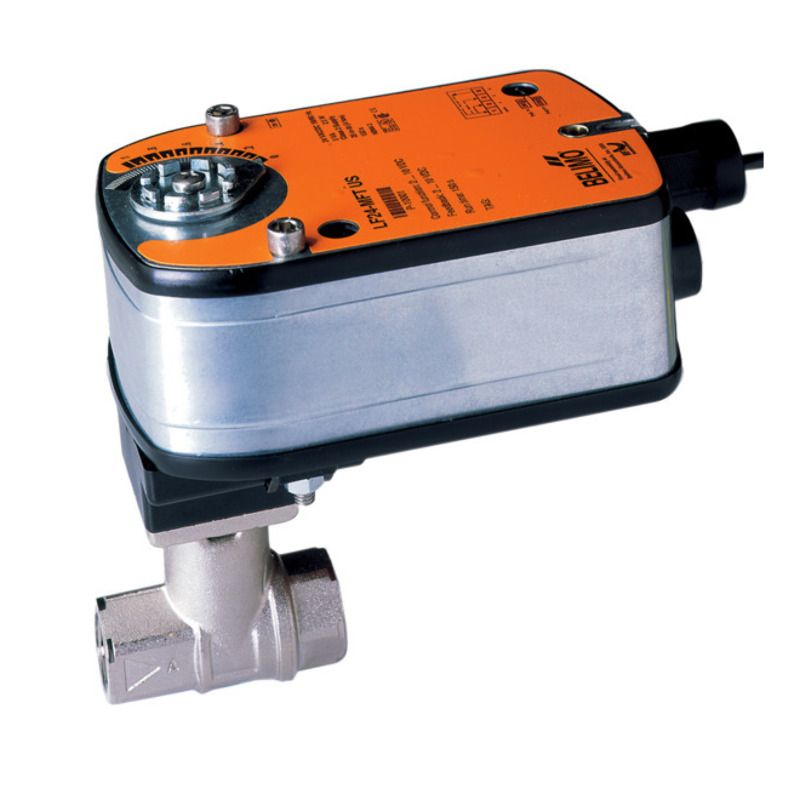

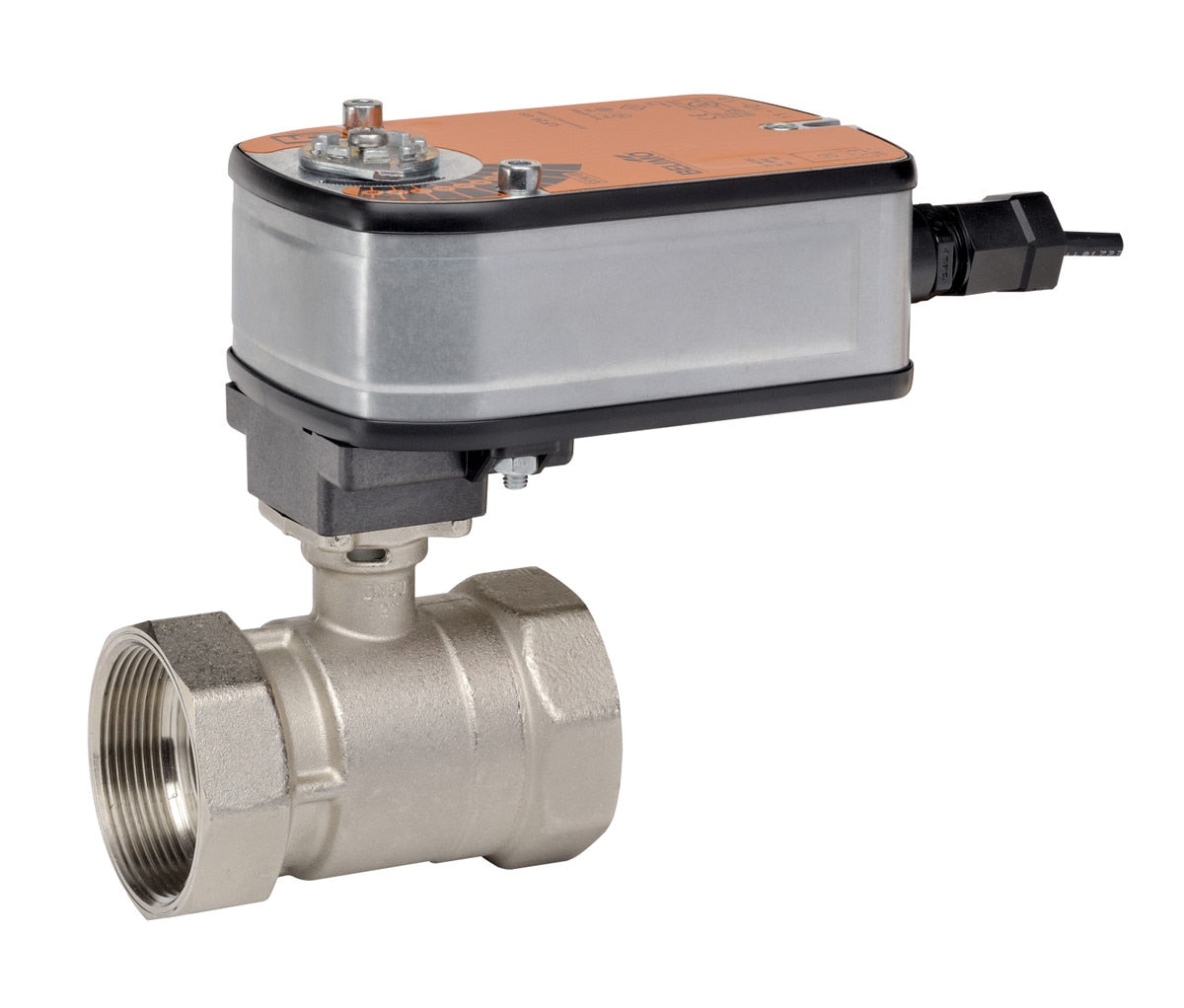

Belimo B230+LF24-SR US CCV 1-1/4 in. NPT 19 Cv

Product Description

The BELIMO B230+LF24-SR US is a characterized control valve with a forged brass, nickel-plated brass body and stainless steel ball and stem. It features a direct-coupled actuator, modulating spring return, and operates on 24 VAC with a 2 to 10 VDC or 4 to 20 mA control signal. Typically used in air handling units on heating or cooling coils, and fan coil units.

• Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
• Valve Is Suitable In Use In A Hydronic System With Variable Flow
• Ball Valve Design Offers Self-Cleaning And Zero Leakage

Product Highlights

The BELIMO B230+LF24-SR US valve is designed for use in hydronic systems with variable flow and offers self-cleaning with zero leakage.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B230+LF24-SR US
• Country of Origin: United States

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 2.5 W Running, 1 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
• Angle of Rotation: 90
• Cv: 19 CV
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless Steel
• Valve Size: 1.25 in
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): <25 s
• Running Time (Motor): 150 s / 90B0
• Voltage AC/DC: AC/DC 24 V
• Runtime: 150 secs
• Voltage: 24vac
• Actuator: LF24-SR US
• Fail-Safe: Spring Return
• Connection: FNPT
• Valve Type: Regular
• Aux. Switch: 1
• Valve Piping: 2-Way
• Feedback Signal: 2-10vdc
• Torque: 35 in-lb
• Control Signal: Analog
• MPN: B230+LF24-SR US
• Brand: BELIMO
