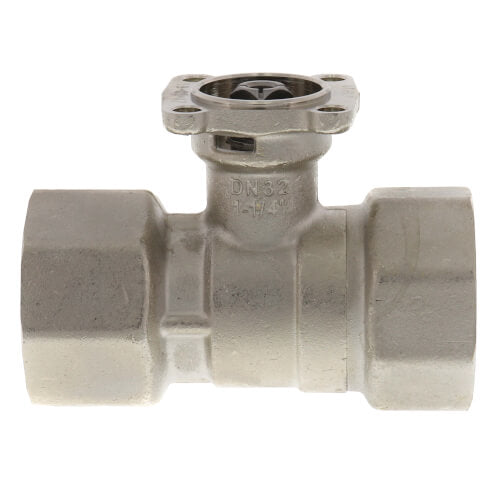

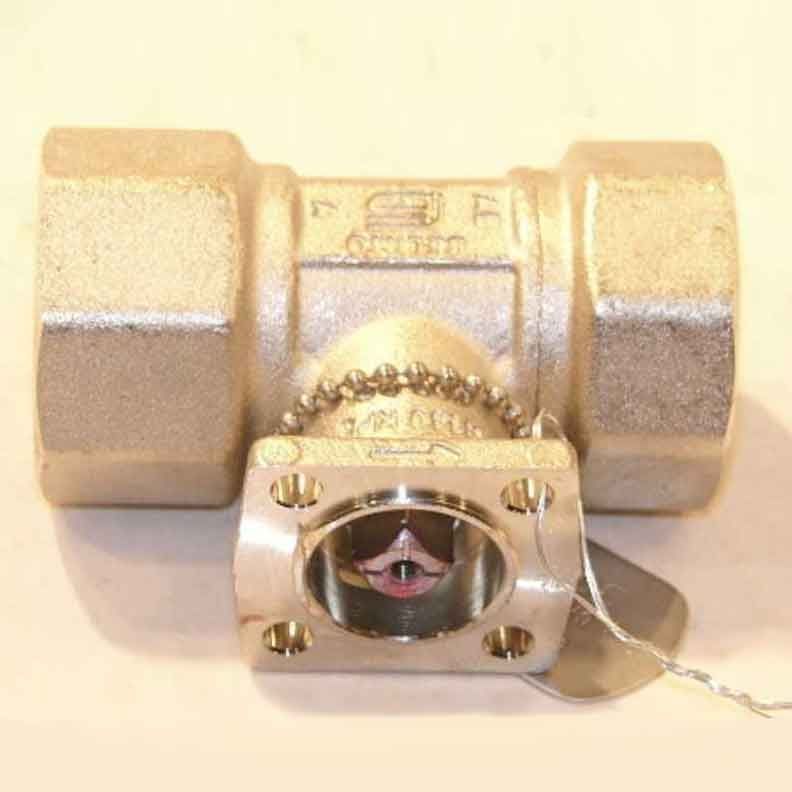

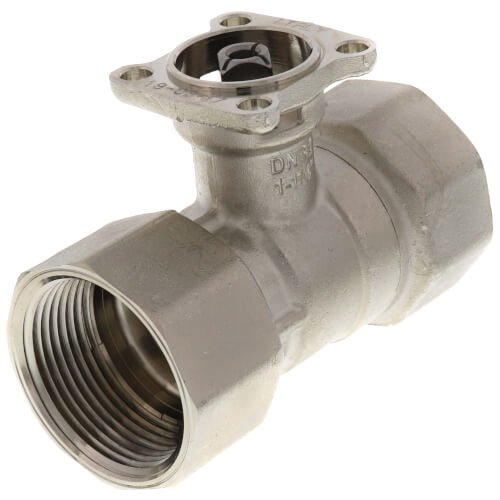

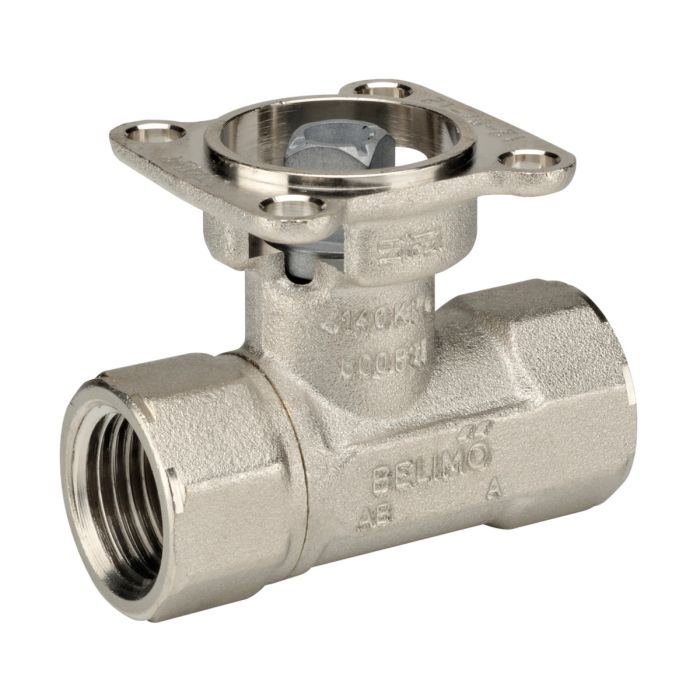

Belimo B230 CCV 2 Way 1-1/4 in NPT 19 Cv

Product Description

The Belimo B230 is a two-way characterized control valve with a nominal size of one and one-fourth inches and a flow coefficient of nineteen. Constructed with a forged brass body and stainless steel ball and stem, this valve provides robust functionality. The valve is used primarily in air handling units and fan coil units for heating and cooling applications. It is suitable for hydronic systems with variable flow.

• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.
• Offers self-cleaning capabilities and zero leakage with a ball valve design.
• Commonly used in air handling units and VAV systems.

Product Highlights

This valve allows improved control stability and energy efficiency in HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B230

Technical Specifications

• Service: Chilled, hot water, up to sixty percent glycol
• Close-Off Pressure: Two hundred psi
• Flow Characteristic: Equal percentage
• Operating Conditions: Zero degrees Fahrenheit to two hundred fifty degrees Fahrenheit
• Valve Size: One and one-fourth inches
• Trim Material: Stainless steel
• End Fitting: Internal thread
• Fluid Type: Chilled or hot water
