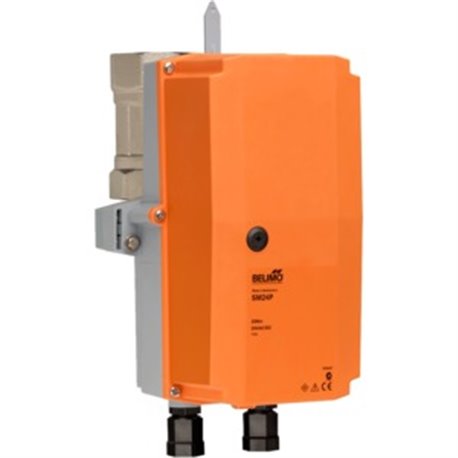

Belimo B229+NRX24-MFT-T N4 CCV Assembly 2 Way 1 1/4 in NPT 10 Cv

Product Description

The Belimo B229+NRX24-MFT-T N4 is a characterized control valve designed for efficient fluid control in HVAC systems. This valve features a nickel-plated brass body with a stainless steel ball and stem for durability and long life. It is equipped with a direct coupled actuator that operates on 24 VAC or DC power, suited for various applications.

• Controllable flow range of up to 75B0.
• Designed for chilled or hot water up to 60% glycol.
• IP66/67 NEMA 4X rated for robust protection.

Product Highlights

This valve is suitable for two-way applications and provides reliable control in HVAC systems. It is an ideal choice for environments requiring protection from dust and water.

Product Information

Standard Information

• Brand: Belimo
• MPN: B229+NRX24-MFT-T N4

Technical Specifications

• Valve Size: 1.25 inches
• Cv: 10
• Angle of Rotation: 90 degrees
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Actuator Type: Non fail-safe
• Control Type: MFT/Programmable
• Degree of Protection: IP66/67 NEMA 4X
• Electrical Connection: Terminals
• Manual Override: External push button
• Power Consumption (Holding): 1.3 W
• Power Consumption (Running): 3.5 W
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: 24 V
