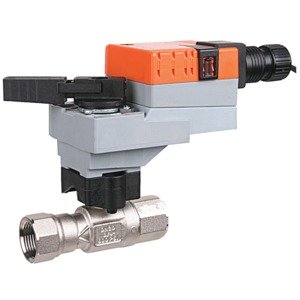

Belimo B225HT464+LRB24-SR HTCCV 1 2 Way 4.64 Cv w Non-Spg 24V 2-10V

Product Description

Belimo presents the B225HT464+LRB24-SR characterized control valve, designed for reliable flow control in various applications. This two-way valve operates at a capacity of four-point sixty-four Cv and is engineered for high temperature hot water and low-pressure steam systems. The valve is powered by twenty-four volts and has a control signal range of two to ten volts.

• Two-way flow pattern with a four-point sixty-four Cv capacity.
• Compatible with high temperature hot water and low pressure steam up to sixty percent glycol.
• Non fail-safe actuator type for consistent performance.

Product Highlights

This control valve ensures precise flow management in HVAC and automation settings.

Product Information

Standard Information

• Manufacturer: Belimo
• Model Number: B225HT464+LRB24-SR

Technical Specifications

• Cv: 4.64
• Control Type: DC 2...10 V
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Voltage: AC/DC 24 V
• Fluid Types: High temperature hot water/low pressure steam up to 60% glycol
• Valve Size: 1 inch (25 mm)
• Angle of Rotation: 90 degrees
• Trim Material: Stainless steel
