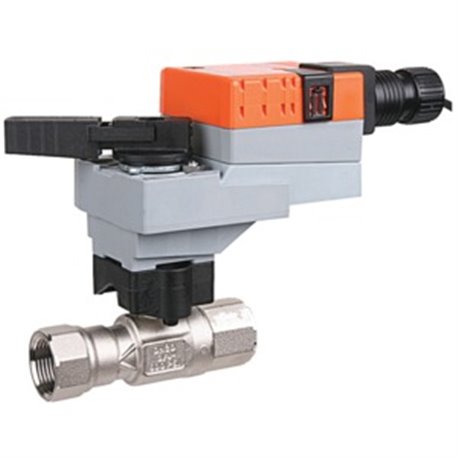

Belimo B225HT464+LRX24-MFT HTCCV Assembly 2 Way 1 in NPT 4.64 Cv

Product Description

Belimo B225HT464+LRX24-MFT is a High Temperature Characterized Control Valve designed for HVAC systems. It features a nickel-plated brass body and a stainless steel ball stem. This valve operates with a direct coupled actuator and has a torque rating of 45 inch-pounds. It is modulating, non-spring return, and operates on 24 VAC.

• Used in air handling units for heating and cooling coils
• Suitable for hydronic systems with variable flow
• Ball valve design ensures self-cleaning and zero leakage

Product Highlights

This valve is rated for water temperatures up to two hundred fifty degrees Fahrenheit. It is designed for compact areas where various control types are required, including on/off, floating point, and modulating control.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B225HT464+LRX24-MFT

Technical Specifications

• Valve Size: 1 inch
• Flow Characteristic: A-Port Equal Percentage
• Close-Off Pressure: 200 psi
• Operating Conditions: -22 degrees Fahrenheit to 122 degrees Fahrenheit
• Power Consumption: 2.5 W running, 1.2 W holding
• Electrical Connection: 18 gauge plenum rated cable
• Degree of Protection: IP54 NEMA 2
• Angle of Rotation: 90 degrees
