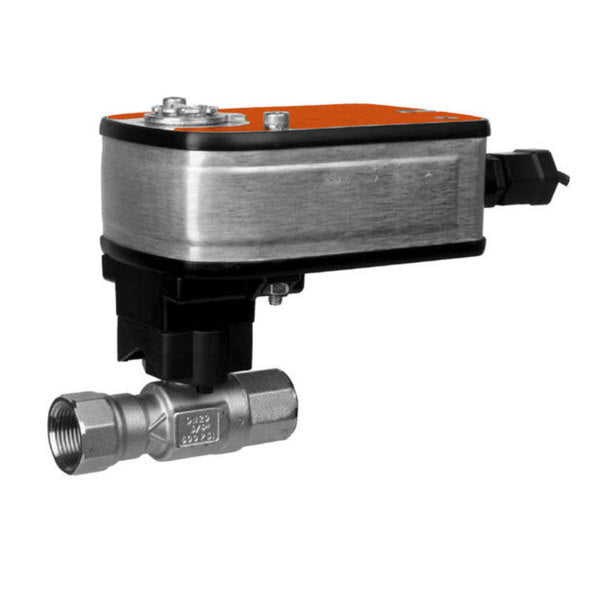

Belimo B225HT464+LF24-SR | HTCCV | 1 | 2 Way | 4.64 Cv | w/ Spg Rtn | 24V | 2-10V

Product Description

The Belimo B225HT464+LF24-SR is a two-way control valve designed for HVAC applications. This model operates at a Cv of 4.64 and is ideal for managing high temperature hot water and low pressure steam up to sixty percent glycol. The valve is equipped with a spring return actuator for efficient operation.

• Reliable control for HVAC systems
• Compatible with 24V AC/DC systems
• Features stainless steel trim for durability

Product Highlights

This valve provides precise flow control in heating and cooling systems, enhancing energy efficiency and system performance.

Product Information

Standard Information

• Brand: Belimo
• MPN: B225HT464+LF24-SR

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 4.64
• End Fitting: Internal thread
• Fluid: High temperature hot water/low pressure steam up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 1 [25]
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: 24V AC/DC
