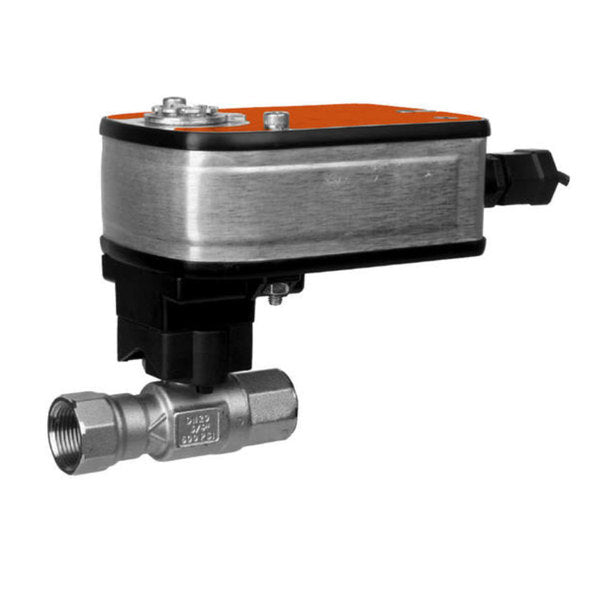

Belimo B225HT464+LF24 HTCCV 1 2 Way 4.64 Cv w/ Spg Rtn 24V On/Off

Product Description

The Belimo B225HT464+LF24 is a valve designed for HVAC applications. It features a two-way configuration and a flow capability of four point sixty-four Cv. The spring return function operates on a twenty-four volt supply, making it suitable for various automatic and manual control systems.

• High temperature compatibility up to sixty percent glycol
• Internal thread end fitting for easy installation
• IP54 NEMA rated for protection against dust and water

Product Highlights

This valve offers reliable performance for heating and cooling systems, ensuring efficient operation.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B225HT464+LF24

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 4.64
• End Fitting: Internal thread
• Fluid: High temperature hot water/low pressure steam up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 1 inch (25 mm)
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
