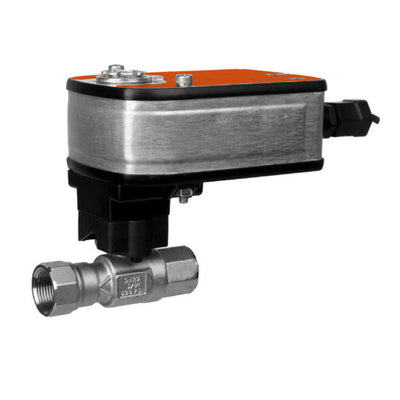

Belimo B225HT464+LF120 HTCCV 1 2 Way 4.64 Cv w/ Spg Rtn 120V On/Off

Product Description

The Belimo B225HT464+LF120 is a reliable two-way valve with a flow coefficient of four point sixty-four. This valve operates at a voltage of one hundred twenty volts and features a spring return actuator.

• Two-way valve design for versatile applications
• High temperature compatibility for various fluids
• Stainless steel trim for durability

Product Highlights

This valve is suitable for high temperature hot water and low pressure steam applications. It is designed to fit well in systems requiring dependable flow control.

Product Information

Standard Information

• Brand: Belimo
• MPN: B225HT464+LF120

Technical Specifications

• Cv: 4.64
• Valve Size: 1 [25]
• Actuator Type: Spring return
• Voltage AC/DC: AC 120 V
• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Pressure Independent: No
• Fluid: High temperature hot water/low pressure steam up to 60% glycol
• Pattern: Two-way
• Degree of Protection: IP54 NEMA2
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 5.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90B0
