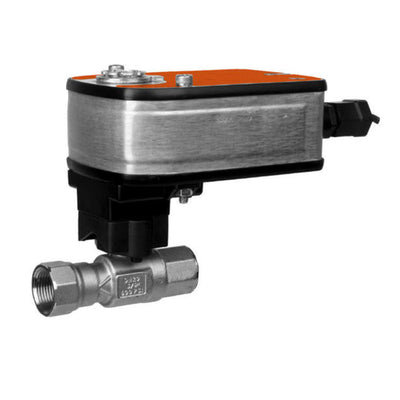

Belimo B225HT2800+LF24 HTCCV 1 2 Way 28 Cv w/ Spg Rtn 24V On/Off

Product Description

The Belimo B225HT2800+LF24 is a two-way valve designed for use in heating and cooling systems. This valve is commonly employed in air handling units and fan coil units. It is suitable for various applications, including unit ventilators and VAV box reheat coils. The valve accommodates hydronic systems with variable flow arrangements.

• Suitable for hydronic systems with variable flow.
• Ideal for air handling units and fan coil applications.
• Features a spring return actuator for efficient operation.

Product Highlights

This valve offers optimal control in heating and cooling processes, providing reliable performance across different flow conditions.

Product Information

Standard Information

• Brand: Belimo
• MPN: B225HT2800+LF24

Technical Specifications

• Valve Size: 1 inch [25]
• Pattern: 2-way
• Cv: 28
• Fluid Type: High temperature hot water/low pressure steam up to 60% glycol
• Actuator Type: Spring return
• Voltage: AC/DC 24V
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Degree of Protection: IP54 NEMA 2
• Angle of Rotation: 90 degrees
