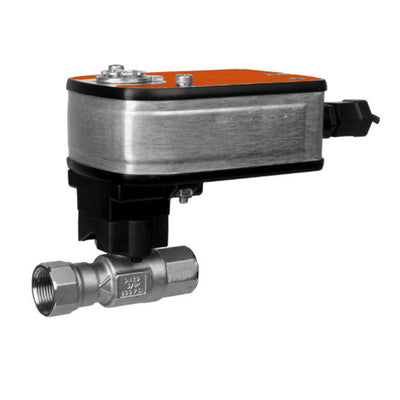

Belimo B225HT2800+LF120 HTCCV 1 2 Way 28 Cv w/ Spg Rtn 120V On/Off

Product Description

The Belimo B225HT2800+LF120 is a two-way valve with a capacity of twenty-eight Cv. It is equipped with a spring return actuator and operates at a voltage of one hundred twenty volts. This model is designed for high temperature hot water and low pressure steam applications, making it suitable for a variety of HVAC systems.

• Operates at one hundred twenty volts AC
• Features stainless steel trim for durability
• Contains internal thread end fittings

Product Highlights

Ideal for high temperature applications, this valve supports efficient flow control and can be utilized in diverse configurations.

Product Information

Standard Information

• Brand: Belimo
• MPN: B225HT2800+LF120

Technical Specifications

• Valve Size: 1 inch [25 mm]
• Flow Pattern: 2-way
• Cv Rating: 28
• Fluid Compatibility: High temperature hot water/low pressure steam up to 60% glycol
• Angle of Rotation: 90 degrees
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Power Consumption (Holding): 3.5 watts
• Power Consumption (Running): 5.5 watts
• Running Time (Motor): 75 seconds
• Electrical Connection: Cable
• Pressure Independent: No
