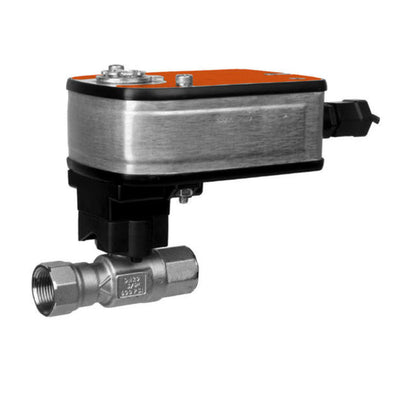

Belimo B225HT1856+LF24-SR HTCCV 1 2 Way 18.56 Cv w/ Spg Rtn 24V 2-10V

Product Description

Belimo B225HT1856+LF24-SR is a two-way control valve designed for heating and cooling applications. This valve is suitable for use in air handling units, fan coil units, and various hydronic systems. It provides efficient flow control for heating and cooling coils.

• Compact design for easy installation.
• Compatible with 24 VAC operation.
• Versatile use in variable flow hydronic systems.

Product Highlights

The B225HT1856+LF24-SR offers flexibility with its spring return actuator and is ideal for various applications in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B225HT1856+LF24-SR

Technical Specifications

• Valve Size: 1 [25]
• Angle of Rotation: 90 degrees
• Cv: 18.56
• End Fitting: Internal thread
• Fluid: High temperature hot water or low pressure steam up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Actuator Type: Spring return
• Voltage AC/DC: AC/DC 24V
• Degree of Protection: IP54 NEMA2
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Motor): 150 seconds / 90 degrees
• Running Time (Fail-safe): Less than 25 seconds
• Electrical Connection: Cable
• Controllable Flow Range: 75B0
