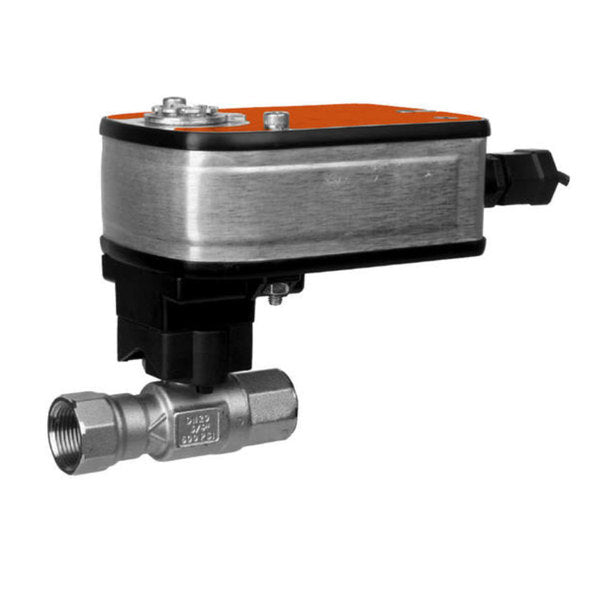

Belimo B225HT1856+LF24 | HTCCV | 1 | 2 Way | 18.56 Cv | w/ Spg Rtn | 24V | On/Off

Product Description

The Belimo B225HT1856+LF24 is a two-way valve designed for use in heating and cooling applications. This valve is often found in air handling units and fan coil units. It operates at eighteen point fifty-six Cv, making it suitable for controlling fluid flow in hydronic systems.

• High temperature hot water and low pressure steam compatible.
• Compact design fits tight spaces for various installation scenarios.
• Spring return actuator for efficient operation.

Product Highlights

This product is designed for variable flow applications and supports on/off, floating point, and modulating control using twenty-four volt AC power.

Product Information

Standard Information

• Brand: Belimo
• MPN: B225HT1856+LF24

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 degrees
• Cv: 18.56
• End Fitting: Internal thread
• Fluid: High temperature hot water/low pressure steam up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 1 inch
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
