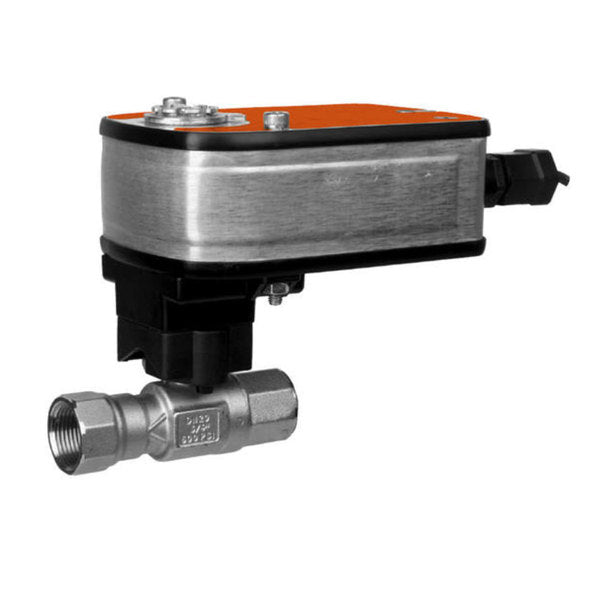

Belimo B225HT1160+LF24-S | HTCCV | 1 | 2 Way | 11.6 Cv | w/ Spg Rtn | 24V | On/Off | SW

Product Description

The Belimo B225HT1160+LF24-S is a two-way valve actuator designed to control the flow of hot water or low-pressure steam. This actuator uses a spring return mechanism and operates at a voltage of 24V. It is ideal for maintaining consistent temperature and pressure in HVAC systems.

• Maximum flow coefficient (Cv) of 11.6
• Internal thread end fitting for easy installation
• Compatible with high temperature hot water and up to 60% glycol fluid

Product Highlights

This actuator allows for efficient control of fluid flow in heating systems and is suitable for various heating applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B225HT1160+LF24-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 11.6
• End Fitting: Internal thread
• Fluid: High temperature hot water/low pressure steam up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 1 [25]
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90B0
• Voltage AC/DC: AC/DC 24V
