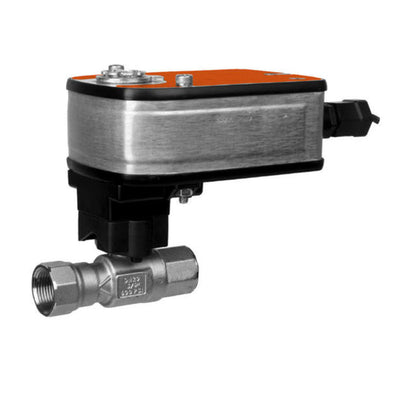

Belimo B225HT1160+LF24 HTCCV 1 2 Way 11.6 Cv w/ Spg Rtn 24V On/Off

Product Description

The Belimo B225HT1160+LF24 is a two-way valve designed for efficient fluid control. It has a Cv of eleven point six, making it suitable for various heating and cooling applications. The valve operates with a spring return actuator and is powered by twenty-four volts AC/DC. This product is ideal for managing high temperature hot water and low-pressure steam systems.

• Valve Size: One inch with internal thread
• Electrical connection via cable
• Degree of protection rated IP54 NEMA 2

Product Highlights

The B225HT1160+LF24 is effective at providing precise flow control in diverse environments.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B225HT1160+LF24

Technical Specifications

• Angle of Rotation: Ninety degrees
• Controllable Flow Range: Seventy-five B0
• Fluid: High temperature hot water/low pressure steam up to sixty percent glycol
• Trim: Stainless steel
• Pressure Independent: No
• Running Time (Fail-safe): Less than twenty-five seconds
• Running Time (Motor): Seventy-five seconds / Ninety degrees
• Power Consumption (Holding): Two point five watts
• Power Consumption (Running): Five watts
