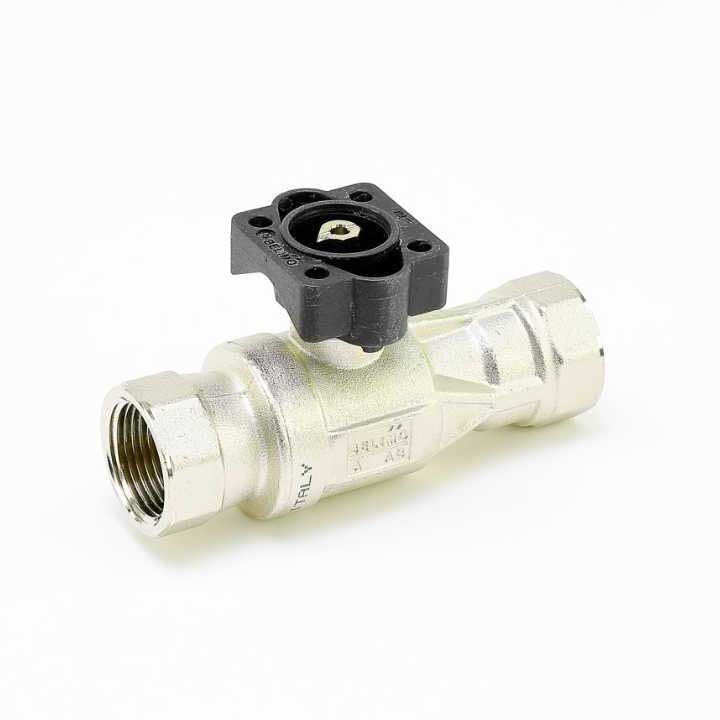

Belimo B225HT1160 Ball Valve Assembly Brass NPT HTCCV 1 Inch 2-Way SS

Product Description

The Belimo B225HT1160 is a high-quality ball valve assembly designed for precise control in HVAC and steam handling systems. This 1-inch NPT 2-way ball valve offers an equal percentage flow, suitable for high-temperature water and low-pressure steam applications, accommodating up to 60% glycol solutions. The valve features a robust brass body with a stainless steel ball and stem to ensure durability and optimal performance in challenging environments.

• Designed for high-temperature water up to 266 degrees Fahrenheit.
• Robust stainless steel components for enhanced durability.
• Equipped for up to 60% glycol solution handling, ensuring versatile use in a variety of systems.

Product Highlights

Belimo's commitment to quality is evident in the B225HT1160's construction, which includes industrial-grade materials for long-lasting reliability and performance. The precise engineering offers exceptional flow control, making it an excellent choice for specialized fluid handling applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B225HT1160

Technical Specifications

• Size: 1 inch NPT
• Type: 2-way
• Body Material: Brass
• Ball/Stem Material: Stainless steel
• Controllable Flow Range: 11.6 Cv
• Max Temperature: 266 degrees Fahrenheit
• Glycol Compatibility: Up to 60%
• Pressure: Low
