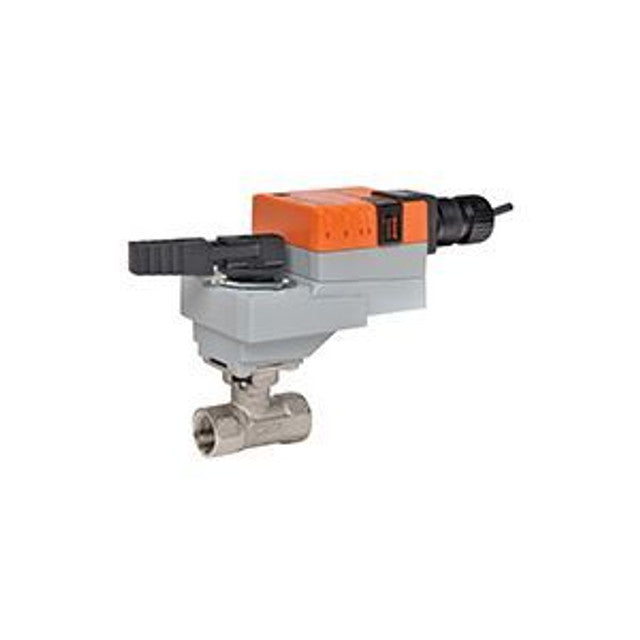

Belimo B225+LRQX24-MFT CCV Assembly, 2 Way, 1 in NPT, 30 Cv

Product Description

This is the Belimo B225+LRQX24-MFT characterized control valve. It is designed for HVAC systems and features a one inch NPT connection. This valve comes with a high flow coefficient of 30 Cv. It operates using a direct coupled actuator and works with either 24 VAC or DC power.

• Valve type: 2 Way
• Fluid compatibility: Chilled or hot water up to 60% glycol
• Actuator protection: IP54 NEMA2 UL Enclosure Type 2

Product Highlights

The Belimo B225+LRQX24-MFT is ideal for various HVAC applications. Its stainless steel trim and nickel plated brass body ensure durability and resistance to corrosion. The valve supports a controllable flow range for precise fluid control.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B225+LRQX24-MFT

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 degrees
• Cv: 30
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 1 inch
• Actuator Type: Non fail-safe
• Control Type: MFT/Programmable
• Degree of Protection: IP54 NEMA2 UL Enclosure Type 2
• Electrical Connection: Cable
• Manual Override: External push button
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 13 W
• Running Time (Motor): 4 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
