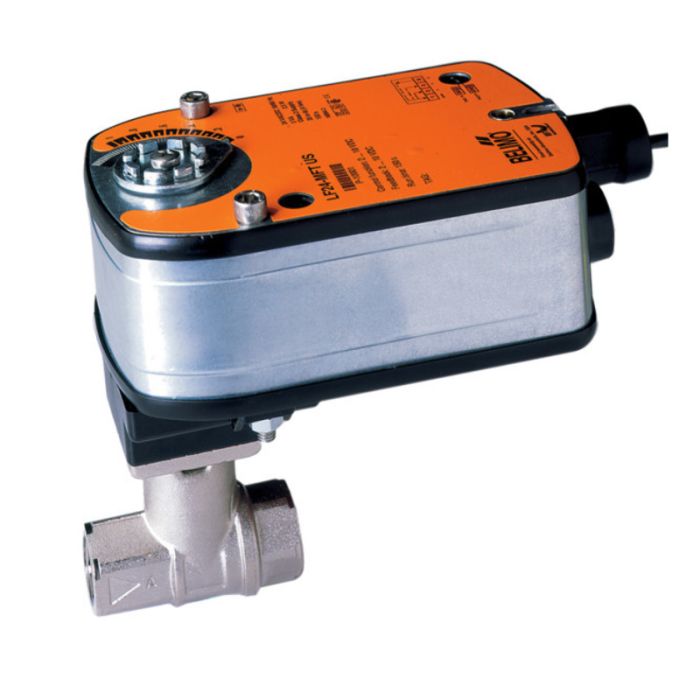

Belimo B225+LF24US CCV Assembly 2 Way, 1 in. NPT, 30 Cv

Product Description

The Belimo B225+LF24US is a characterized control valve designed for use in heating and cooling systems. This two-way valve features a one-inch NPT connection and has a flow coefficient of thirty. It is suitable for applications in air handling units and fan coil systems.

• Constructed from forged brass with a stainless steel ball and stem.
• Includes a direct coupled actuator with a torque rating of thirty-five in-lb.
• Operational at twenty-four VAC or DC with spring return functionality.

Product Highlights

This valve delivers reliable performance for HVAC applications, maintaining control over chilled and hot water temperatures.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B225+LF24US

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Chilled, hot water, up to sixty percent glycol
• Flow Characteristic: Equal percentage
• Close-Off Pressure: 200 psi
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 3 ft. 18 GA appliance cable with 1/2 in. conduit connector
• Power Consumption: 5 W running, 2.5 W holding
• Trim: Stainless steel
