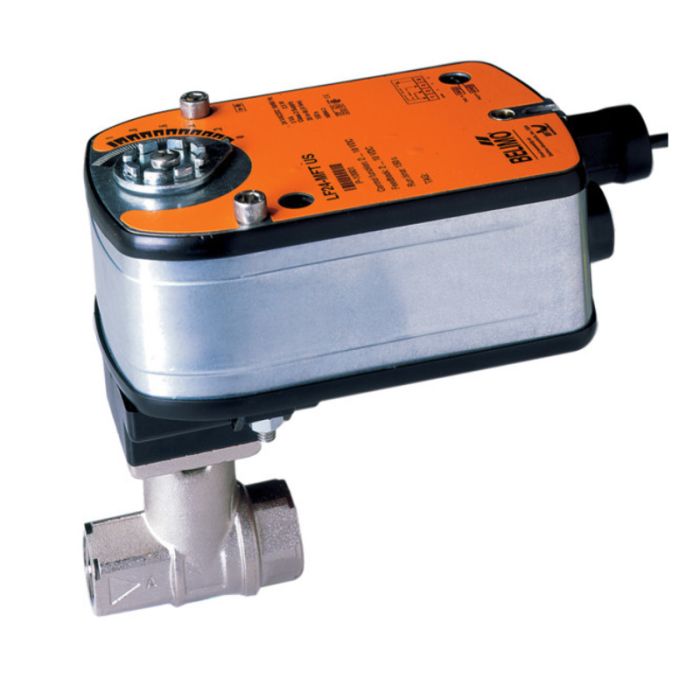

Belimo B225+LF120US CCV Assembly 2 Way 1 in NPT 30 Cv

Product Description

The Belimo B225+LF120US is a characteristically designed control valve, suitable for various HVAC applications. This valve is ideal for use in air handling units for both heating and cooling systems, making it a versatile choice for trade professionals. The valve features a forged brass construction with a nickel-plated brass body and stainless steel ball and stem.

• Direct coupled actuator with 35 in-lb torque
• Spring return fail-safe mechanism
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit

Product Highlights

Perfect for chilled or hot water systems. Ideal for hydronic systems with variable flow. Offers self-cleaning and zero leakage due to its ball valve design.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B225+LF120US

Technical Specifications

• Size: One inch
• Flow Characteristic: Equal Percentage
• Close-Off Pressure: Two hundred psi
• Operating Conditions: Negative twenty-two degrees Fahrenheit to positive one hundred twenty-two degrees Fahrenheit
• Power Consumption: Five point five watts running and three point five watts holding
• Electrical Connection: Three-foot eighteen gauge appliance cable with half inch conduit connector
• Degree of Protection: NEMA 2, IP54
• Trim Material: Stainless steel
