Belimo B225 1 inches Valve Body Only 30 Cv

Product Description

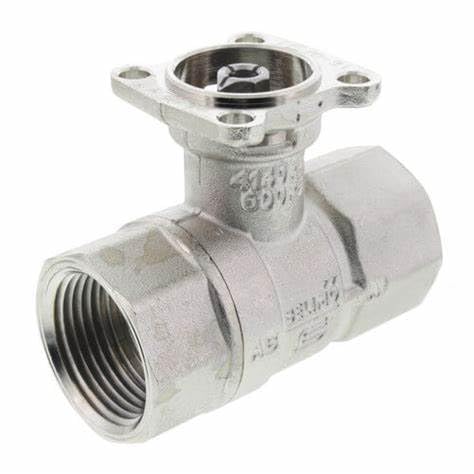

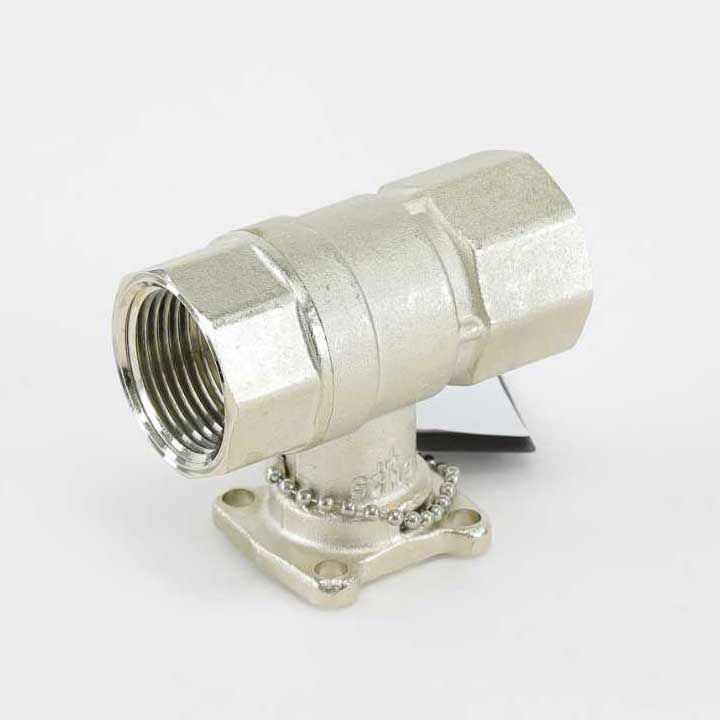

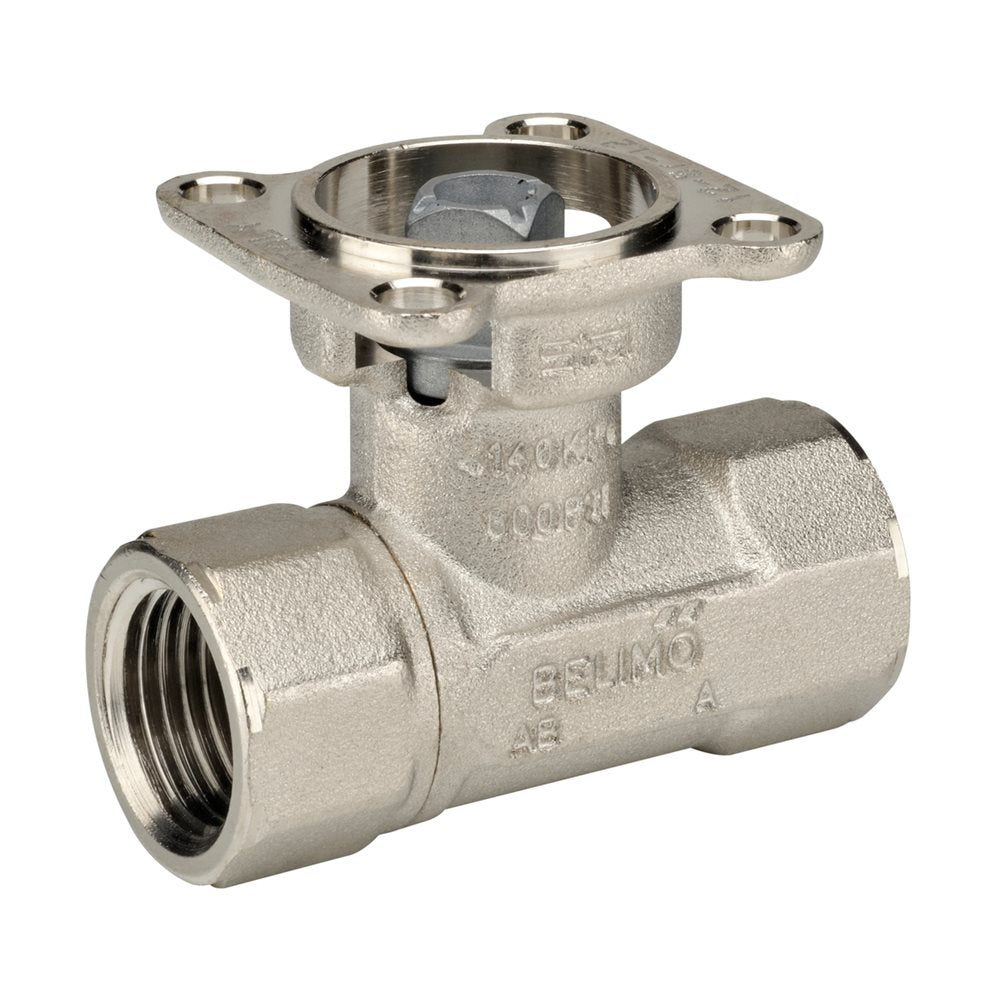

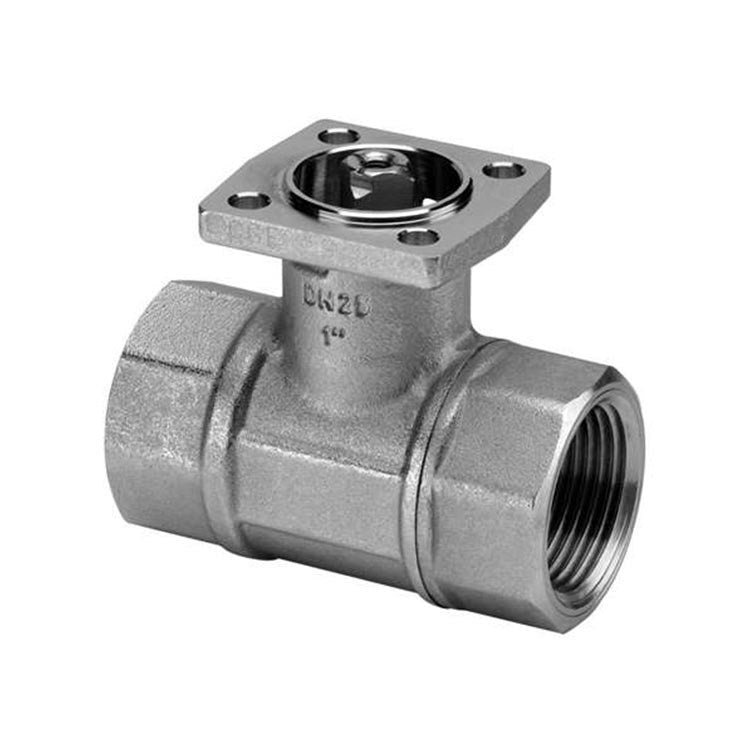

The Belimo B225 is a 1" valve body only, designed as a 2-way control valve. Constructed with a nickel-plated brass body and stainless steel stem, it features EPDM seals. It is designed for air handling units, fan coil units, and VAV box re-heat coil applications. The valve has a capacity of 30 Cv and a controllable flow range of 75 degrees.

• Maintenance-Free
• Body Material: Nickel Plated Brass
• Temperature Rating: 0 to 250 Deg F

Product Highlights

This Belimo valve is ideal for HVAC systems requiring precise flow control. Its durable construction ensures longevity and reliable performance in various applications.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B225
• Country of Origin: Italy

Technical Specifications

• Application: Air Handling Unit, Fan Coil Unit, Unit Ventilator, VAV Box Re-Heat Coil, Bypass Loop
• Body Material: Nickel Plated Brass
• End Connection: Female Threaded x Female Threaded
• End To End Distance: 3.1 Inch
• Nominal Size: 1 Inch x 1 Inch
• Pressure Rating: 600 PSI
• Seal Material: EPDM
• Stem Material: Stainless Steel
• Temperature Rating: 0 to 250 Deg F
• Type: 2-Way
• Manufacturer Name: Belimo
• Manufacturer Part Number: B225
• Service: Chilled, Hot Water, Up To 60% Glycol
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F To 250 F (-18 C To 120 C)
• Brand: Belimo
• CV: 30
• Connection: NPT
• Valve Size: 1 in
• Valve Type: Regular
• Valve Piping: 2-Way
• Size: 1 in
